D-type Mixing Head for Polyurethane Pouring Machines
Mixer head / Polyurethane Machines
This D-type mixing head is a core matching component specially developed for the pouring process of polyurethane heavy-duty industrial tires, and is highly adapted to the production requirements of heavy-duty tires for trucks, engineering machinery, special vehicles and other equipment under severe working conditions. Equipped with a 39-channel alloy steel mixing head high-pressure pouring system, three-component synchronous metering and intelligent temperature-controlled curing technology, it achieves a mixing uniformity of ≥98%. Relying on…
Key Features
- Three-component Synchronous Dynamic Metering
- High-pressure Closed-cell Foaming Molding
- Intelligent Temperature-controlled High-efficiency Curing
- Customized Cleaning Adaptability
- Wide-specification Mold Compatibility
Product Description
This D-type mixing head is a core matching component specially developed for the pouring process of polyurethane heavy-duty industrial tires, and is highly adapted to the production requirements of heavy-duty tires for trucks, engineering machinery, special vehicles and other equipment under severe working conditions. Equipped with a 39-channel alloy steel mixing head high-pressure pouring system, three-component synchronous metering and intelligent temperature-controlled curing technology, it achieves a mixing uniformity of ≥98%. Relying on high-precision dynamic mixing, high pressure-resistant pouring molding and high-durability structural design, it reshapes the production process of polyurethane heavy-duty tires, enabling precise pouring of tread, sidewall, reinforcement layer and other parts. It helps enterprises manufacture wear-resistant, tear-resistant and long-service-life industrial-grade polyurethane heavy-duty tires, and is a core key component for the large-scale production of heavy-duty polyurethane tires.
Product Parameters
| Item | Performance Specification |
|---|---|
| Mixing Head Configuration | 39-channel alloy steel mixing head, pressure resistance ≥25MPa |
| Applicable Pouring Thickness | 12-50mm (tread/sidewall/reinforcement layer) |
| Density and Hardness Control | Precision error ≤1.5%, closed-cell ratio ≥90% |
| Production Rhythm | Curing time per mold ≤15 minutes (adjustable according to specifications) |
| Energy Consumption Optimization | Comprehensive energy consumption reduced by 15-20% |
| Mold Compatibility | Adaptable to tire molds with a diameter of 600-1500mm |
| Raw Material Mixing Uniformity | ≥98% |
Application Areas

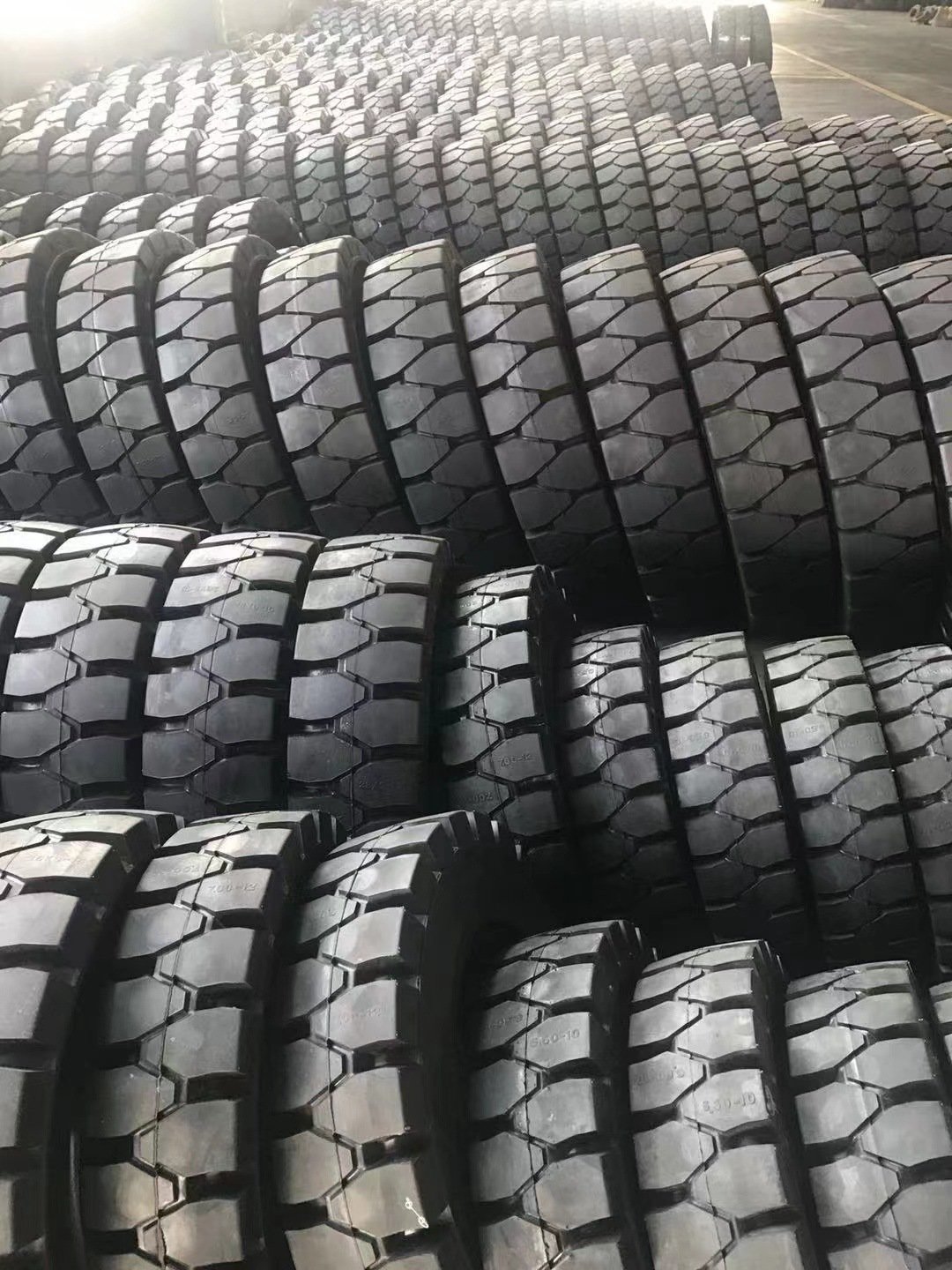

The Manufacturing Field of Polyurethane Heavy-duty Industrial Tires
It is core-adapted to the pouring production of various polyurethane heavy-duty tires for trucks, engineering machinery, special operation vehicles and other equipment, and can complete the precise mixing and high-pressure pouring of key parts such as tread, sidewall and reinforcement layer, meeting the use requirements of heavy-duty tires under complex and severe working conditions. At the same time, it is suitable for the customized production of heavy-duty tires with different diameters of 600-1500mm and different thicknesses of 12-50mm.
Technical Highlights
Original Asymmetric Flow Channel Reconstruction Design for Maximized Mixing Uniformity
Adopt an original asymmetric flow channel separation and reorganization structure, composed of mixing units alternately formed by circular curved tubes and rectangular straight tubes, with a cyclic cross layout to form intense chaotic convection in the chamber. After diversion at the feed inlet, the raw materials accelerate to form a high-speed jet in the tapered tube and collide violently with the fluid in the straight tube, increasing the raw material contact area by more than 40% compared with the traditional structure and fundamentally solving the problem of uneven mixing of multi-component raw materials, with a mixing uniformity of ≥98%.
Three-component Synchronous Metering Technology for Precise and Controllable Dynamic Proportioning
The alloy steel mixing head is matched with a high-torque metering pump to realize the dynamic synchronous proportioning of A/B/C three-component polyurethane raw materials, ensuring the precision of raw material mixing ratio from the source. Combined with the closed-cell foaming process, the tire density and hardness error are ≤1.5%, the finished product wear resistance is increased by 25%, the tear resistance is enhanced by 30%, and the service life breaks through industry standards.
39-channel Alloy Steel Mixing Head with High Pressure Resistance and Strong Adaptability
The integrated 39-channel alloy steel mixing head is designed with a pressure resistance grade of ≥25MPa, which can meet the high-pressure pouring process requirements of heavy-duty tires. The alloy steel material has both wear and corrosion resistance, adapting to industrial-grade continuous production. Meanwhile, the multi-channel design realizes uniform flow distribution of raw materials and is suitable for the pouring of 12-50mm thick-walled parts.
Constant Temperature High-efficiency Curing Process for Dual Advantages of Energy Saving and Efficiency Improvement
Perfectly adapt to the aluminum alloy mold + water circulation heating process. The rapid heat conduction characteristic of the aluminum alloy mold shortens the tire curing time by 20%; matched with a pneumatic mold clamping frame, it ensures uniform mold clamping force, effectively avoiding molding defects. At the same time, the comprehensive energy consumption is reduced by 15% compared with the traditional heating method, taking into account both production efficiency and energy saving.
Customized Cleaning Interface Design for Significantly Reduced Downtime
Equipped with an exclusive customized cleaning interface, it can flexibly formulate cleaning agent formulas according to polyurethane raw materials of different hardness, adapting to the cavity cleaning needs of various raw materials. The raw material switching efficiency is increased by 40%, and the equipment downtime for cleaning is reduced by 60%, adapting to the flexible production needs of various specifications of heavy-duty tires.
Why Choose Haifeng Automation's D-type Mixing Head?
Exclusive Customization for Heavy-duty Tire Processes with Higher Adaptability
We deeply engage in the R&D of core components for polyurethane heavy-duty tire pouring, and all structural designs are in line with the production requirements of heavy-duty tires under severe working conditions. Compared with general-purpose mixing heads, it is highly matched with the pouring, foaming and curing processes of polyurethane heavy-duty tires, and the finished product qualification rate is far higher than the industry average.
High-precision Technology Ensures High-end Quality with Better Performance
Core technologies such as three-component synchronous metering, high-pressure closed-cell foaming and asymmetric flow channel mixing realize full-process precise control from raw material mixing to pouring molding, greatly improving the core performance of tire wear and tear resistance, and helping enterprises create cost-effective industrial-grade heavy-duty tires.
High Efficiency, Energy Saving & Cost Reduction for Higher Production Benefits
The multiple designs of rapid curing by water circulation heating, energy-saving operation of pneumatic mold frame and rapid cleaning by customized interface reduce the comprehensive production cost in multiple dimensions such as shortening production cycle, reducing energy consumption and cutting downtime, and improve the production efficiency and benefits of enterprises.
Full Compatibility with Wide Specifications for Higher Production Flexibility
It can adapt to tire molds with a full diameter range of 600-1500mm, support the pouring of parts with different thicknesses of 12-50mm, and is compatible with polyurethane raw materials of different hardness. One mixing head can meet the production needs of enterprises for heavy-duty tires of multiple specifications and varieties without the need for additional equipment configuration.
High-durability Structural Design for More Stable Operation
The core mixing head is made of alloy steel material with pressure resistance, wear resistance and corrosion resistance, adapting to the 7×24-hour continuous operation requirements of industrial production lines, with a low failure rate and low subsequent maintenance costs, providing a stable guarantee for the large-scale production of enterprises
