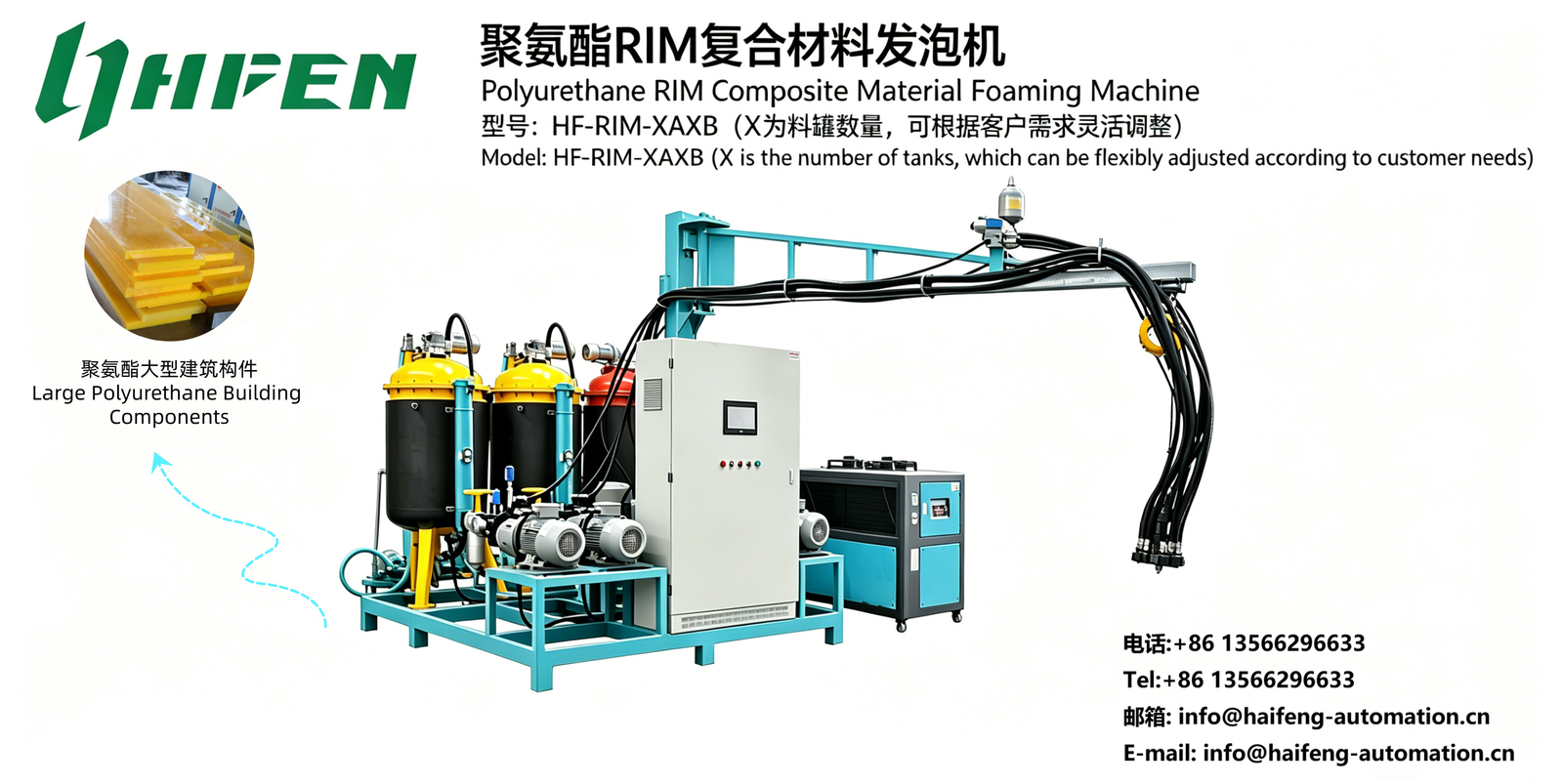

Polyurethane RIM Composite Machine For Large Building Components
Polyurethane Machines
Product ParametersParameterModel：HF-RIM-1A1B-BuildingPartsPouring Rate100～2000 g/sMix RatioPolyether: Isocyanate = 100:90~110Tank Capacity200L / 300L (Optional, Per Tank)Dosing Accuracy≤±0.3% (Full Dynamic Range)Tank Configuration1A1B Two-Component Independent Temp Control + Circulation StirringTemperature Control25～45℃Mixing Pressure150～200 barVenting SystemMold Negative Pressure...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-RIM-1A1B-BuildingParts |
|---|---|
| Pouring Rate | 100～2000 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Fiber-reinforced structural polyurethane RIM composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios
Suitable for the production of prefabricated exterior wall components, architectural decorative parts, and large-scale lightweight structural parts. Using fiber-reinforced formula, the finished products have the characteristics of light weight, high strength, weather resistance, anti-aging and dimensional stability, meeting the production needs of modern prefabricated buildings.
Core Advantages
Suitable for fiber-reinforced structural formulas, with light weight, compression resistance and weather resistance, meeting building standards.
Large-flow stable discharge, which can meet the overall pouring molding of large-shaped building components.
High-precision metering closed-loop control, small deformation of finished products and higher dimensional uniformity.
One-key switching of multiple formulas, flexibly adapting to batch production of various types of building composite components.
Product Parameters
| Parameter | Model：HF-RIM-1A1B-BuildingParts |
|---|---|
| Pouring Rate | 100～2000 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Fiber-reinforced structural polyurethane RIM composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios
Suitable for the production of prefabricated exterior wall components, architectural decorative parts, and large-scale lightweight structural parts. Using fiber-reinforced formula, the finished products have the characteristics of light weight, high strength, weather resistance, anti-aging and dimensional stability, meeting the production needs of modern prefabricated buildings.
Core Advantages
Suitable for fiber-reinforced structural formulas, with light weight, compression resistance and weather resistance, meeting building standards.
Large-flow stable discharge, which can meet the overall pouring molding of large-shaped building components.
High-precision metering closed-loop control, small deformation of finished products and higher dimensional uniformity.
One-key switching of multiple formulas, flexibly adapting to batch production of various types of building composite components.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
