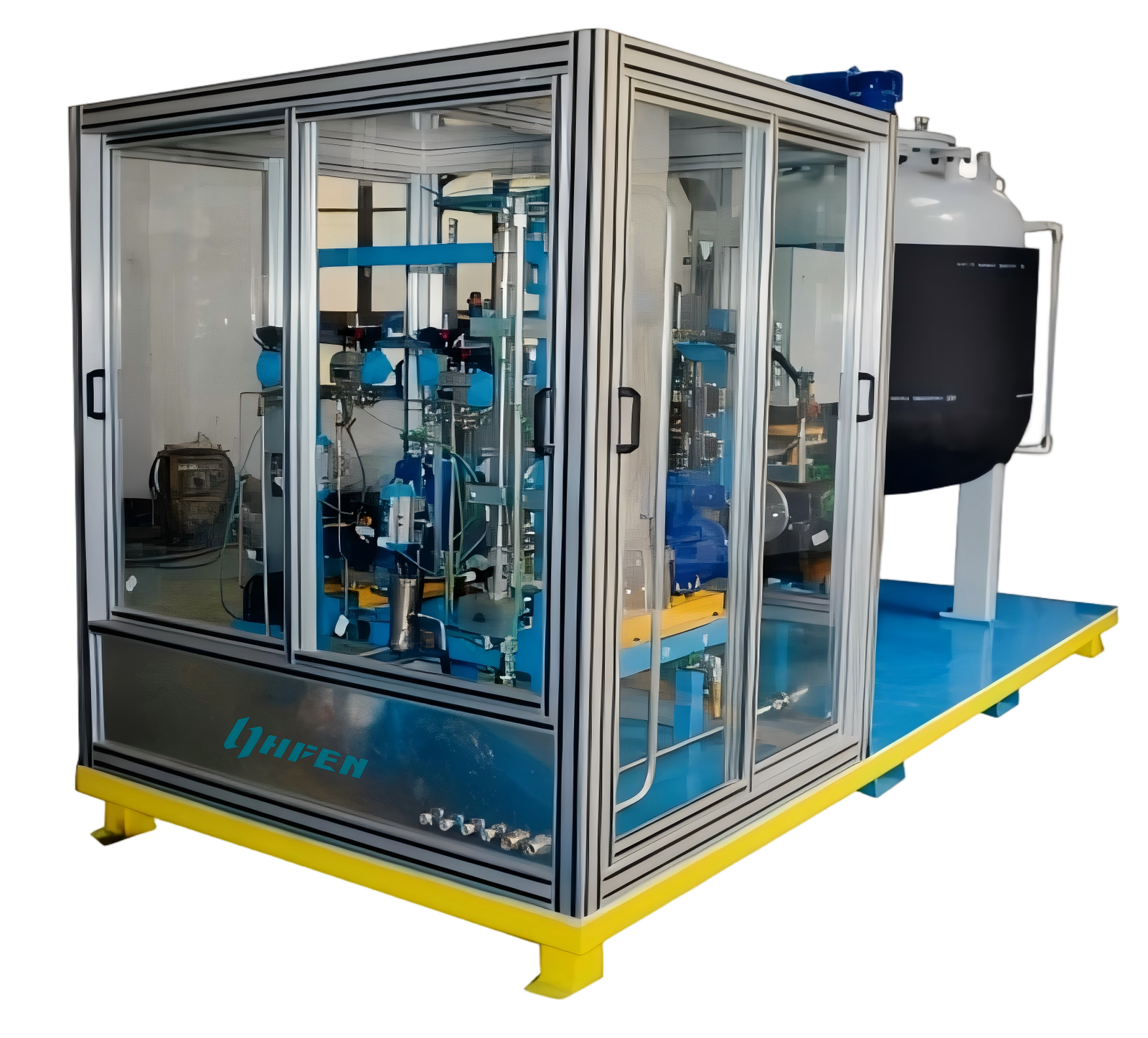

Polymer Premixing Station – Static Mixing Station for cyclopentane, catalyst or 245FA
High Pressure Polyurethane Machine / Premixing Station
[Introduction] Static mixing stations go beyond simple material blending; they are engineered to precisely premix crucial components—such as cyclopentane, catalysts, and 245fa—to the exact uniformity required for advanced processing. By delivering highly...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
- [Introduction] Static mixing stations go beyond simple material blending; they are engineered to precisely premix crucial components—such as cyclopentane, catalysts, and 245fa—to the exact uniformity required for advanced processing. By delivering highly consistent mixtures directly into the production cycle, they ensure a seamless, efficient, and reliable manufacturing flow across demanding industrial applications.
- [Capacity] 0.5-1 t/h
- [Improvement] Haifeng can customize the polymer premixing station according to the actual working conditions and customer requirements.
ADVANTAGES
- Intelligent Remote Monitoring System – The station is equipped with an advanced remote monitoring system that allows operators and engineers to track real-time operational status, process parameters, and data logs. This transparency facilitates quick fault diagnosis and enables remote technical support, maximizing machine uptime and ensuring continuous production.
- Strict Anti-Leakage Control – Engineered specifically for the handling of polyurethane chemicals, the static mixing station features high-standard sealing and anti-leakage control designs. From pipeline connections and valves to the pumping system, it comprehensively eliminates material dripping. This ensures a clean, eco-friendly production environment while preventing the waste of expensive raw materials.
- Reliable Nitrogen Protection – A comprehensive nitrogen protection mechanism is integrated into the material mixing and storage process. By displacing air within the pipelines and storage tanks, it prevents oxygen and moisture from reacting with and degrading the raw materials. This maintains optimal chemical activity and significantly enhances the explosion-proof safety of the entire system.
- Cyclopentane Gas Monitoring and Alarm System – Safety is the absolute priority in cyclopentane foaming applications. The system features a highly sensitive gas concentration monitoring matrix. If cyclopentane gas in the working area approaches safety thresholds, it instantly triggers audio-visual alarms and automatically activates emergency ventilation and system shut-off protocols, providing the highest level of operational safety.
- Industrial-Grade Explosion-Proof Electrical Appliances – To meet strict safety compliance in flammable and explosive environments (such as pentane premixing workshops), all critical electrical components, sensors, motors, and control cabinets feature a fully explosion-proof design. This ensures the equipment operates safely and reliably within high-risk classified zones, meeting international industrial safety standards.
- Precision Carbon Dioxide Gas Filling Unit(Optional) – The station includes a high-accuracy CO2 gas filling unit capable of stably injecting liquid or gas carbon dioxide into the system at exact ratios. This unit not only optimizes the eco-friendly profile of the foaming process but also significantly improves the cell structure and thermal insulation properties of the final polyurethane foam.
- Polyether Component Gas Filling Unit(Optional) – A dedicated gas nucleation and filling system for the polyether (polyol) component ensures precise control over the gas content within the raw material. This specialized unit enhances the mixing uniformity inside the static mixer, guaranteeing consistent density and superior physical properties in the final foamed products, such as home appliance insulation and automotive interiors.
PRODUCT STRUCTURE

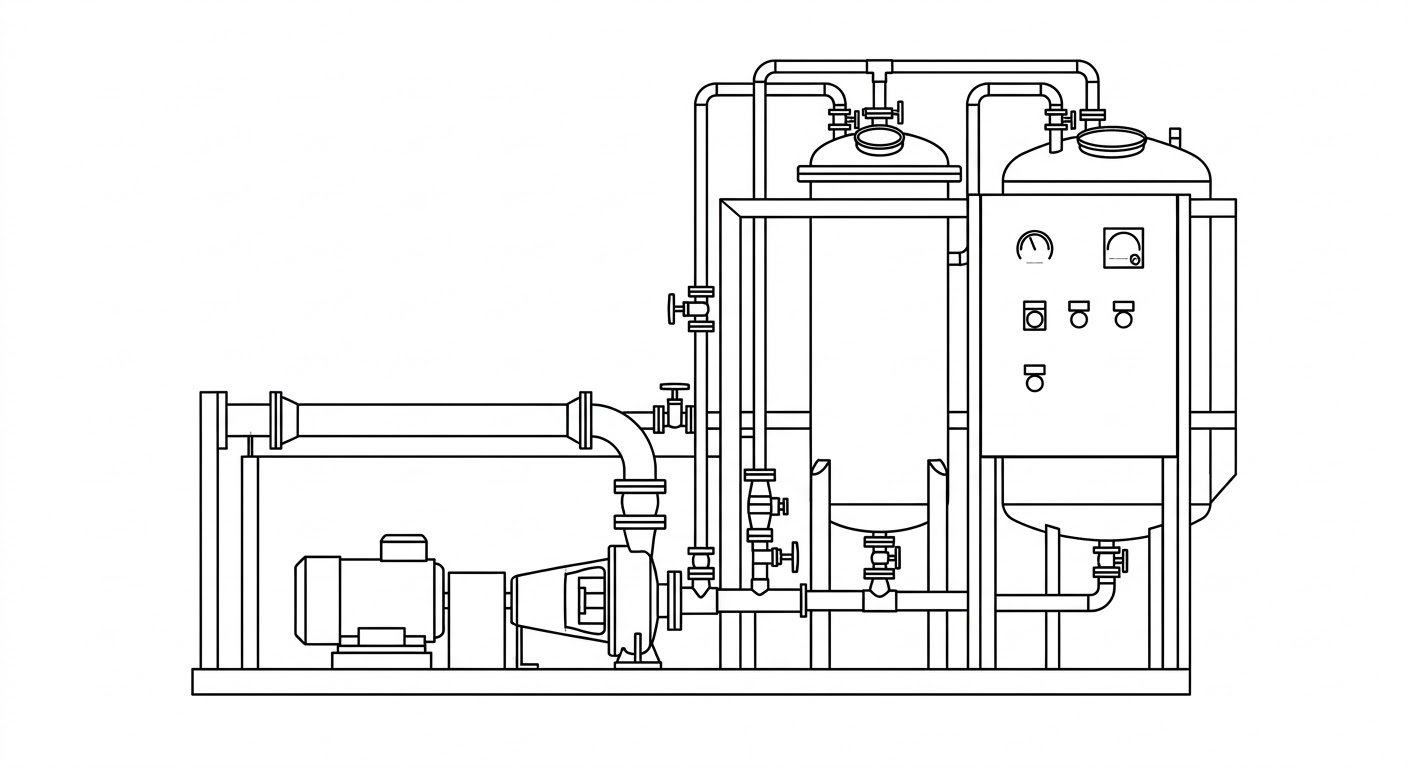

The overall product structure of the Static Mixing Station is designed to ensure that polyurethane chemical components are efficiently premixed in a safe, stable, and highly controlled environment. Its hardware configuration strictly adheres to industrial standards for high-risk environments, providing a robust physical foundation for your automated production line.
1.Explosion-Proof Electrical System: Engineered specifically for flammable and explosive working environments (such as pentane foaming processes), the entire static mixing station is fully equipped with top-tier safety components. This includes explosion-proof and dust-proof motors, explosion-proof alarm lights, explosion-proof power distribution cabinets, and industrial-grade explosion-proof cables. The primary purpose of this structural design is to strictly prevent and mitigate the risk of combustible gas explosions. By completely eliminating the hazard of electrical sparks at the hardware level, it guarantees absolute safety in the workshop.
2. Liquid Level Monitoring System: The internal structure integrates a high-precision liquid level gauge system that provides 24/7 real-time monitoring of the station’s operational status, material consumption, and storage volume. This highly accurate level data is continuously linked with the central control system to ensure the seamless continuity of the premixing and filling processes, effectively preventing any material shortage or overflow issues during active production.
3. Standardized Pressure Vessel Tanks: The manufacturing process for the mixing and material storage tanks is extremely rigorous. The tank structures are manufactured, welded, and extreme-tested strictly in accordance with professional pressure vessel standards. This high-strength, pressure-bearing design not only ensures absolute hermetic sealing under high-pressure operations but also significantly extends the equipment’s service life in demanding chemical environments.
PRODUCT PARAMETERS
|
Process Challenge |
Material / Engineering Reality |
The Haifeng Engineering Solution |
|
Heavy-Duty Wheel Failure |
Traditional rubber tires in mining/forging suffer from blowout risks, fast abrasion, and massive 6-month curing times for large sizes. |
Switching to MDI cast polyurethane (CPU) eliminates inflation risks and cuts production time to just 1 month. |
|
Space Constraints in Mines |
Underground mining vehicles must maintain a low profile to navigate height-restricted tunnels |
PU offers 3-4x the load capacity at half the thickness of rubber. |
|
Casting Massive PU Parts |
Producing wheels over 1 meter in diameter (up to 50-ton capacity) requires massive, continuous, bubble-free chemical output. |
Haifeng Polyurethane Machine provides high-output CPU casting machines with dynamic mixing and continuous vacuum degassing for flawless giant pours. |
Technical Highlights
High-Efficiency Static Mixer Core
The core of the station utilizes precisely engineered internal geometric elements to continuously divide, recombine, and shear the material flow. This continuous in-line process ensures a perfectly homogenous blend of polyol with blowing agents (such as cyclopentane or 245fa) and catalysts. Because it achieves this without relying on moving mechanical parts, it significantly minimizes maintenance requirements while maximizing mixing consistency.
High-Precision Closed-Loop Dosing
The system integrates advanced mass flow meters and VFD-controlled dosing pumps to form an intelligent closed-loop control network. This setup continuously monitors and adjusts the flow rates in real-time, guaranteeing exact stoichiometric ratios of the main raw materials and trace additives. This level of precision drastically reduces formulation errors and prevents the waste of expensive chemical components.
Dynamic Temperature and Pressure Regulation
To handle sensitive and volatile blowing agents safely, the station features integrated heat exchangers and automated pressure-sustaining valves. These components work together to maintain optimal thermodynamic conditions throughout the entire premixing process. This dynamic regulation is crucial for preventing gas cavitation, stabilizing the chemical blend, and ensuring consistent cell nucleation in the final polyurethane foam structure.
Micro-Precision Gas and Trace Dosing
To maximize the efficiency of the integrated CO2 and polyether gas filling units, the station employs high-resolution mass flow meters combined with specialized micro-dosing valves. This ultra-precise metering architecture allows for the exact, continuous injection of trace catalysts and gaseous blowing agents under incredibly strict tolerances. By guaranteeing that these critical micro-components are metered with flawless accuracy prior to entering the static mixer, the system ensures perfectly uniform cell nucleation, leading to exceptional density consistency and thermal insulation performance in the final polyurethane product.
PRODUCT PARAMETERS
Application details are configured according to the material, product, and production process.
Technical Highlights
High-Efficiency Static Mixer Core
The core of the station utilizes precisely engineered internal geometric elements to continuously divide, recombine, and shear the material flow. This continuous in-line process ensures a perfectly homogenous blend of polyol with blowing agents (such as cyclopentane or 245fa) and catalysts. Because it achieves this without relying on moving mechanical parts, it significantly minimizes maintenance requirements while maximizing mixing consistency.
High-Precision Closed-Loop Dosing
The system integrates advanced mass flow meters and VFD-controlled dosing pumps to form an intelligent closed-loop control network. This setup continuously monitors and adjusts the flow rates in real-time, guaranteeing exact stoichiometric ratios of the main raw materials and trace additives. This level of precision drastically reduces formulation errors and prevents the waste of expensive chemical components.
Dynamic Temperature and Pressure Regulation
To handle sensitive and volatile blowing agents safely, the station features integrated heat exchangers and automated pressure-sustaining valves. These components work together to maintain optimal thermodynamic conditions throughout the entire premixing process. This dynamic regulation is crucial for preventing gas cavitation, stabilizing the chemical blend, and ensuring consistent cell nucleation in the final polyurethane foam structure.
Micro-Precision Gas and Trace Dosing
To maximize the efficiency of the integrated CO2 and polyether gas filling units, the station employs high-resolution mass flow meters combined with specialized micro-dosing valves. This ultra-precise metering architecture allows for the exact, continuous injection of trace catalysts and gaseous blowing agents under incredibly strict tolerances. By guaranteeing that these critical micro-components are metered with flawless accuracy prior to entering the static mixer, the system ensures perfectly uniform cell nucleation, leading to exceptional density consistency and thermal insulation performance in the final polyurethane product.
