Polyurethane Spraying Machine For Industrial Anti-Corrosion
Spray Polyurethane Machine
Product ParametersParameterModel：HF-SP-01Max Flow15kg/min@110bar, 9kg/min@160bar, 7kg/min@240barMax Pressure240barDrive ModeHydraulic DriveTank Quantity2 TanksPower Supply3PE 400V 50/60HzHeater Power12kWMax Hose Length93m(Insulation)/78m(Polyurea)Weight232kg(Without Oil)Application ScenariosSuitable for anti-corrosion spraying construction of chemical pipelines, inner and outer walls of storage tanks,...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-SP-01 |
|---|---|
| Max Flow | 15kg/min@110bar, 9kg/min@160bar, 7kg/min@240bar |
| Max Pressure | 240bar |
| Drive Mode | Hydraulic Drive |
| Tank Quantity | 2 Tanks |
| Power Supply | 3PE 400V 50/60Hz |
| Heater Power | 12kW |
| Max Hose Length | 93m(Insulation)/78m(Polyurea) |
| Weight | 232kg(Without Oil) |
Application Scenarios

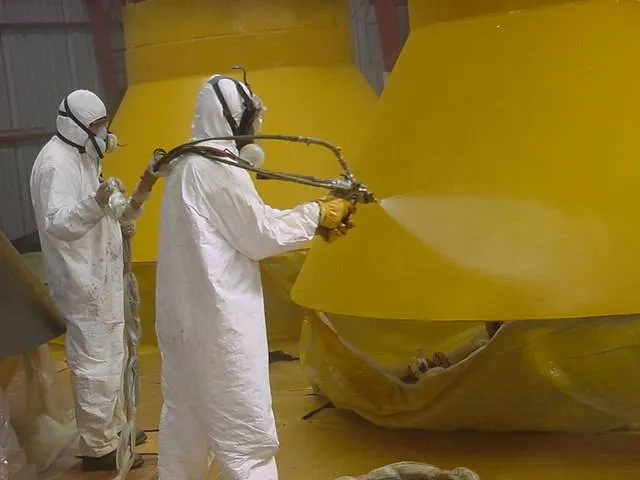

Suitable for anti-corrosion spraying construction of chemical pipelines, inner and outer walls of storage tanks, steel structures, sewage treatment facilities, marine engineering, industrial floors, etc. It is compatible with spraying operations of industrial long-term protection and acid and alkali corrosion resistant materials, meeting the construction requirements of anti-corrosion protection in industrial scenarios.
Core Advantages
240bar high-pressure steady flow output, dense and uniform coating with stable adhesion
Compatible with polyurethane, polyurea and other anti-corrosion materials, with excellent anti-aging and corrosion resistance
Equipped with hydraulic oil cooling system, supporting long-term continuous operation with stable running status
Accurate ratio of two-component materials, uniform coating performance and controllable construction quality
Product Parameters
| Parameter | Model：HF-SP-01 |
|---|---|
| Max Flow | 15kg/min@110bar, 9kg/min@160bar, 7kg/min@240bar |
| Max Pressure | 240bar |
| Drive Mode | Hydraulic Drive |
| Tank Quantity | 2 Tanks |
| Power Supply | 3PE 400V 50/60Hz |
| Heater Power | 12kW |
| Max Hose Length | 93m(Insulation)/78m(Polyurea) |
| Weight | 232kg(Without Oil) |
Application Scenarios
Suitable for anti-corrosion spraying construction of chemical pipelines, inner and outer walls of storage tanks, steel structures, sewage treatment facilities, marine engineering, industrial floors, etc. It is compatible with spraying operations of industrial long-term protection and acid and alkali corrosion resistant materials, meeting the construction requirements of anti-corrosion protection in industrial scenarios.
Core Advantages
240bar high-pressure steady flow output, dense and uniform coating with stable adhesion
Compatible with polyurethane, polyurea and other anti-corrosion materials, with excellent anti-aging and corrosion resistance
Equipped with hydraulic oil cooling system, supporting long-term continuous operation with stable running status
Accurate ratio of two-component materials, uniform coating performance and controllable construction quality
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
Ready to Upgrade Your Polyurethane Production?
Haifeng supplies polyurethane machinery, robotic systems, and complete production solutions backed by process evaluation, commissioning, training, and lifecycle support.
