Polyurethane Elastomer Casting Machine For Pipe Lining
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-2A2B-PipeLinerPouring Rate100～1500 g/sRaw Material RatioMOCA: 100:10~13; BDO: 100:4~6Tank Capacity150 / 220 LMixing Head Speed6000～10000 r/minMetering Accuracy≤±0.5% (Full range)Tank Configuration2A2B two-component + anti-corrosion additive tankMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-PipeLiner |
|---|---|
| Pouring Rate | 100～1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 6000～10000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 11～15 kW |
| Control System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Applicable System | Medical-grade polyether polyol + Medical-grade isocyanate |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

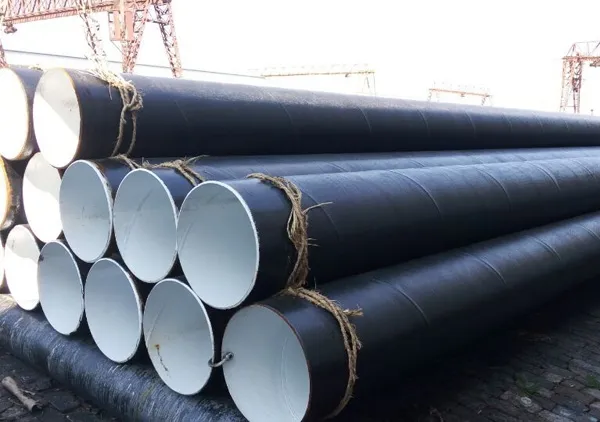

Specially designed for polyurethane lining casting of pipelines in chemical, mining and sewage treatment industries, widely suitable for lining molding of various corrosive medium and high-wear conveying pipelines. It supports MOCA heavy anti-corrosion formula, meeting the core production needs of wear resistance, acid and alkali resistance, anti-scaling and long-term protection, improving pipeline service life and operational stability.
Core Advantages
2A2B configuration with anti-corrosion additive tank, greatly improving the acid, alkali and corrosion resistance of the lining, suitable for heavy corrosion working conditions.
Continuous stable pouring process, uniform and dense lining thickness without pores, effectively improving pipeline protection effect.
Support MOCA/BDO dual chain extender switching, flexibly adapt to the production needs of pipelines conveying different media.
Large flow is suitable for various pipeline sizes, stable operation, meeting mass continuous production of pipeline lining.
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-PipeLiner |
|---|---|
| Pouring Rate | 100～1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 6000～10000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 11～15 kW |
| Control System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Applicable System | Medical-grade polyether polyol + Medical-grade isocyanate |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for polyurethane lining casting of pipelines in chemical, mining and sewage treatment industries, widely suitable for lining molding of various corrosive medium and high-wear conveying pipelines. It supports MOCA heavy anti-corrosion formula, meeting the core production needs of wear resistance, acid and alkali resistance, anti-scaling and long-term protection, improving pipeline service life and operational stability.
Core Advantages
2A2B configuration with anti-corrosion additive tank, greatly improving the acid, alkali and corrosion resistance of the lining, suitable for heavy corrosion working conditions.
Continuous stable pouring process, uniform and dense lining thickness without pores, effectively improving pipeline protection effect.
Support MOCA/BDO dual chain extender switching, flexibly adapt to the production needs of pipelines conveying different media.
Large flow is suitable for various pipeline sizes, stable operation, meeting mass continuous production of pipeline lining.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
