Polyurethane High Pressure Machine For Building Material Sandwich Panel
High Pressure Polyurethane Machine
Product ParametersParameterModel：HF-HPM-2A2B-SandwichPanelPouring Rate300～2200 g/sMix RatioPolyether: Isocyanate = 100:100~130Tank Capacity200L / 300L (Optional, Per Tank)Mixing Head Speed8000～14000 r/minDosing Accuracy≤±0.3% (Full Dynamic Range)Tank Configuration2A2B Two-Component Independent Temp Control + Circulation StirringTemperature Control20～45℃Mixing Pressure10～18 MPaVacuum...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-HPM-2A2B-SandwichPanel |
|---|---|
| Pouring Rate | 300～2200 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:100~130 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Mixing Head Speed | 8000～14000 r/min |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 2A2B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 20～45℃ |
| Mixing Pressure | 10～18 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-Free & Eco-Friendly) |
| Power | 11～15 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Polyurethane Rigid Foam Insulation System |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios

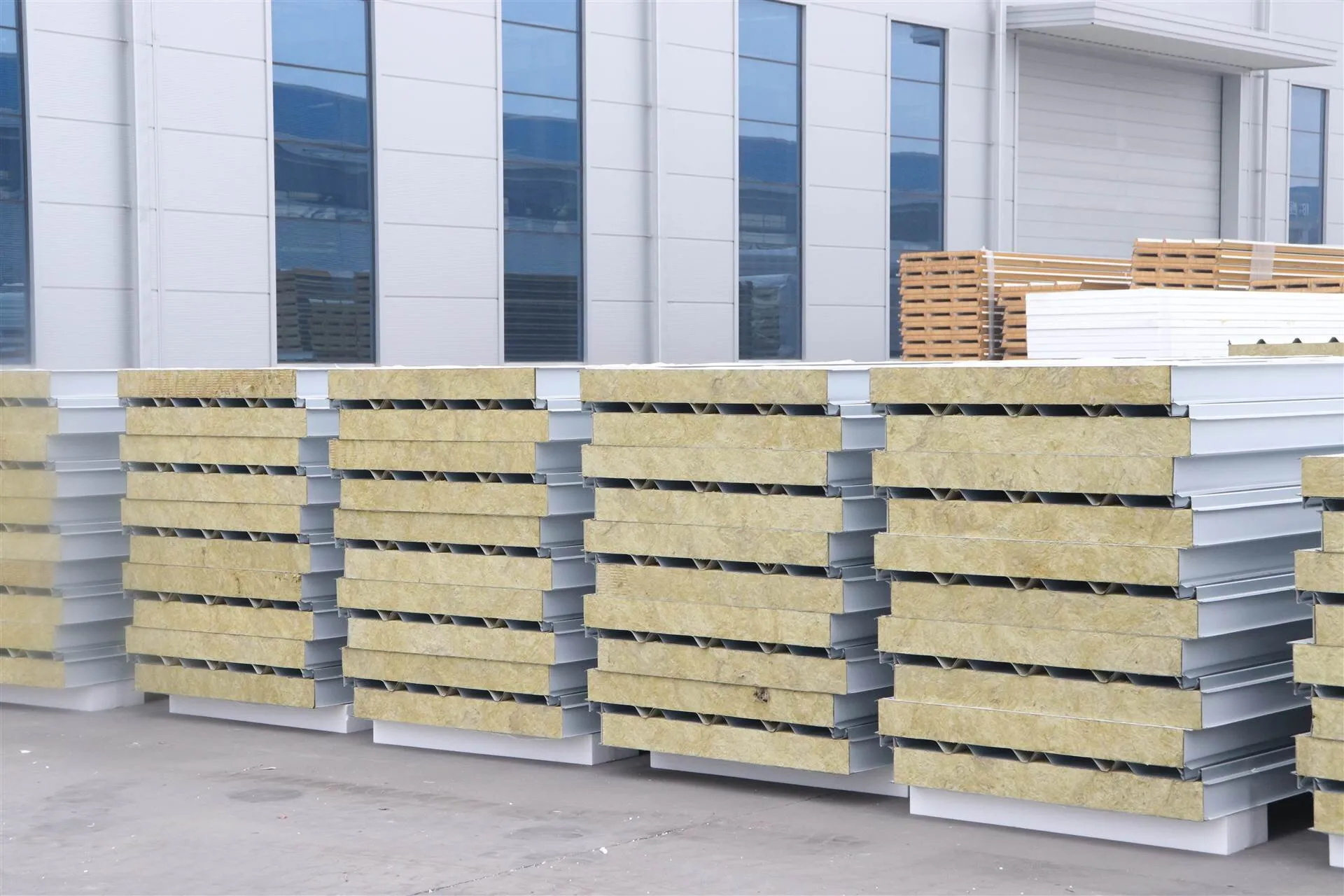

Specially designed for continuous foaming production of building exterior wall insulation panels, clean panels and prefabricated building sandwich panels. It is suitable for composite of color steel, aluminum foil and other face materials, meeting the core needs of uniform cells, thermal insulation, flame retardancy and standard size, adapting to continuous automatic production lines in the building materials industry.
Core Advantages
Large flow is suitable for panel continuous production line, greatly improving foaming efficiency and capacity.
High-pressure precise mixing, delicate panel cells without voids, up-to-standard thermal insulation and compression resistance.
Accurate two-component ratio, low raw material loss, suitable for large-scale continuous production.
Full-line linkage control, which can quickly switch production of multi-specification and multi-thickness panels.
Product Parameters
| Parameter | Model：HF-HPM-2A2B-SandwichPanel |
|---|---|
| Pouring Rate | 300～2200 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:100~130 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Mixing Head Speed | 8000～14000 r/min |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 2A2B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 20～45℃ |
| Mixing Pressure | 10～18 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-Free & Eco-Friendly) |
| Power | 11～15 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Polyurethane Rigid Foam Insulation System |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios
Specially designed for continuous foaming production of building exterior wall insulation panels, clean panels and prefabricated building sandwich panels. It is suitable for composite of color steel, aluminum foil and other face materials, meeting the core needs of uniform cells, thermal insulation, flame retardancy and standard size, adapting to continuous automatic production lines in the building materials industry.
Core Advantages
Large flow is suitable for panel continuous production line, greatly improving foaming efficiency and capacity.
High-pressure precise mixing, delicate panel cells without voids, up-to-standard thermal insulation and compression resistance.
Accurate two-component ratio, low raw material loss, suitable for large-scale continuous production.
Full-line linkage control, which can quickly switch production of multi-specification and multi-thickness panels.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
