Polyurethane Elastomer Casting Machine for Extrusion Roller
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-2A2B-Roller-ExtrusionPouring Rate60～1100 g/sRaw Material RatioMOCA: 100:9~12; BDO: 100:3~6Tank Capacity150 / 220 LMixing Head Speed7000～11000 r/minMetering Accuracy≤±0.4% (Full range)Tank Configuration2A2B two-component + wear-resistant additive tankMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-Extrusion |
|---|---|
| Pouring Rate | 60～1100 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Metering Accuracy | ≤±0.4% (Full range) |
| Tank Configuration | 2A2B two-component + wear-resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 7.5～11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

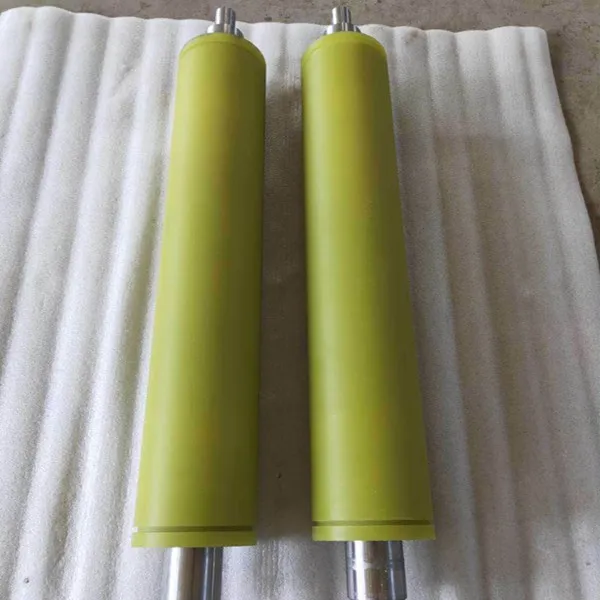

Specially designed for the production of polyurethane rollers for extrusion industry, widely suitable for extrusion molding equipment such as plastic, rubber and metal plates. It is used for material guiding, pressing and conveying, meeting the core needs of high-load extrusion, wear resistance, deformation resistance and stable operation, ensuring the dimensional accuracy of extruded products, avoiding scratches and deformation, and adapting to high-load continuous operation of various extrusion production lines.
Core Advantages
2A2B configuration with wear-resistant additive tank, compatible with reinforcing fillers, rubber layer is wear-resistant and tear-resistant, stable under pressure, not deformed after long-term extrusion.
Dynamic precise metering and temperature control, uniform rubber layer hardness, small compression set, stable operation, ensuring the molding accuracy of extruded products.
Support MOCA/BDO dual chain extender switching, flexibly adjust hardness and resilience, suitable for different material extrusion conditions.
Stable and reliable operation, strong adhesion between rubber layer and roller core, long-term continuous production, prolonging roller service life.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneElastomerCastingMachine #ExtrusionRollerEquipment #RollerCastingMachine #ExtrusionPartsProductionEquipment #HighHardnessRollerCastingMachine
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-Extrusion |
|---|---|
| Pouring Rate | 60～1100 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Metering Accuracy | ≤±0.4% (Full range) |
| Tank Configuration | 2A2B two-component + wear-resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 7.5～11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for the production of polyurethane rollers for extrusion industry, widely suitable for extrusion molding equipment such as plastic, rubber and metal plates. It is used for material guiding, pressing and conveying, meeting the core needs of high-load extrusion, wear resistance, deformation resistance and stable operation, ensuring the dimensional accuracy of extruded products, avoiding scratches and deformation, and adapting to high-load continuous operation of various extrusion production lines.
Core Advantages
2A2B configuration with wear-resistant additive tank, compatible with reinforcing fillers, rubber layer is wear-resistant and tear-resistant, stable under pressure, not deformed after long-term extrusion.
Dynamic precise metering and temperature control, uniform rubber layer hardness, small compression set, stable operation, ensuring the molding accuracy of extruded products.
Support MOCA/BDO dual chain extender switching, flexibly adjust hardness and resilience, suitable for different material extrusion conditions.
Stable and reliable operation, strong adhesion between rubber layer and roller core, long-term continuous production, prolonging roller service life.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneElastomerCastingMachine #ExtrusionRollerEquipment #RollerCastingMachine #ExtrusionPartsProductionEquipment #HighHardnessRollerCastingMachine
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
