KPU Polyurethane Automatic Foaming Line
KPU Production Line
Product ParametersParameterModel：HF-KPU-LineCompatible EquipmentHF-LPM-1A1B Low-Pressure Foaming MachineNumber of Stations12/16/24 stations (optional)Control SystemPLC + touchscreen centralized controlApplicable MoldsCustom KPU molds (single/multi-cavity optional)Production Cycle15–60s/mold (adjustable)Total Installed Power15–30kW (depending on station configuration)Rated Voltage380VOverall DimensionCustomized (adaptable to...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-KPU-Line |
|---|---|
| Compatible Equipment | HF-LPM-1A1B Low-Pressure Foaming Machine |
| Number of Stations | 12/16/24 stations (optional) |
| Control System | PLC + touchscreen centralized control |
| Applicable Molds | Custom KPU molds (single/multi-cavity optional) |
| Production Cycle | 15–60s/mold (adjustable) |
| Total Installed Power | 15–30kW (depending on station configuration) |
| Rated Voltage | 380V |
| Overall Dimension | Customized (adaptable to workshop layout) |
| Certification | CE (EN 60204-1), ISO9001 |
Application Scenarios

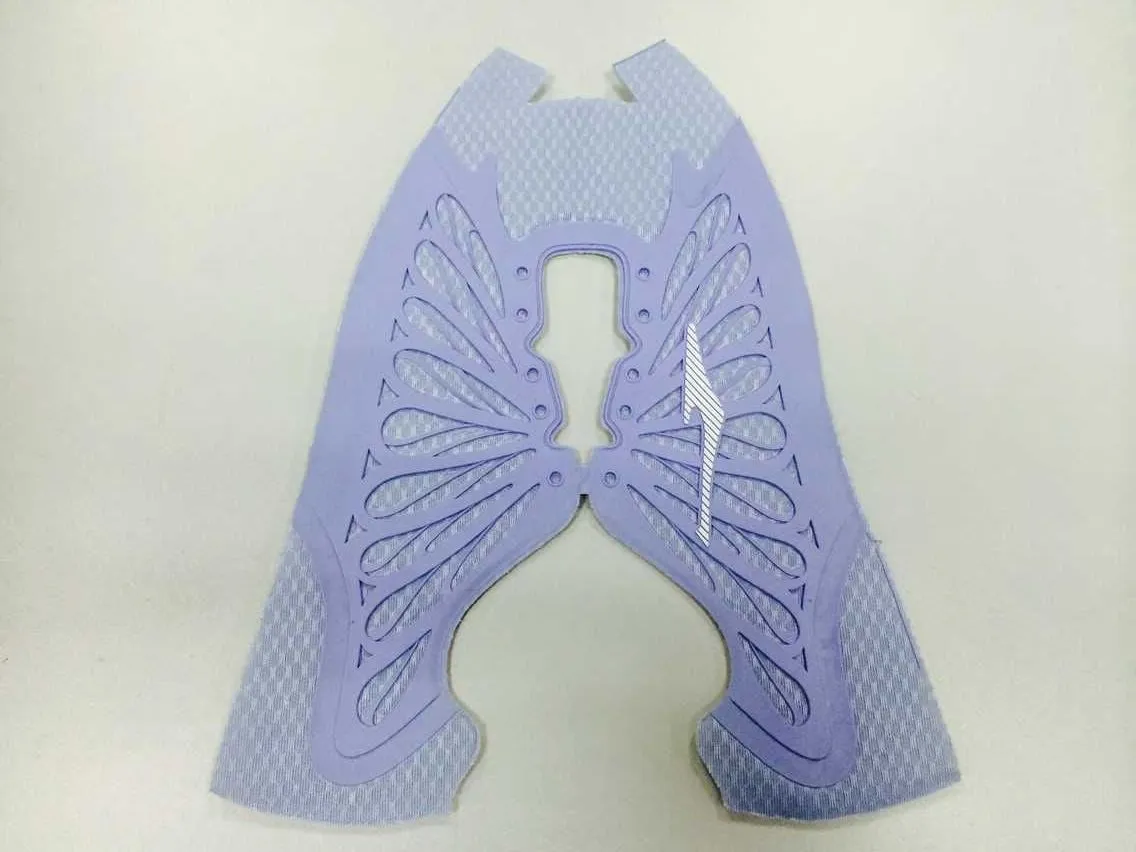

Used for integrated production of KPU shoe labels, upper patches, sports equipment accessories, soft rubber ornaments, faux leather fabrics and other polyurethane products, covering processes including pouring, forming, cooling and demolding. It meets the needs from small-batch to mass production.
Core Advantages
The assembly line adopts an integrated design, which can be seamlessly connected with the HF-LPM-1A1B low-pressure foaming machine, realizing fully automated operations from raw material pouring, mold temperature control, forming and curing to cooling and demolding, greatly reducing manual intervention and improving production efficiency.
Equipped with multi-stage independent mold temperature control system, it can precisely adjust the mold temperature according to the characteristics of KPU raw materials, ensuring uniform and stable product forming, effectively avoiding defects such as material shortage, bubbles and deformation, and guaranteeing the yield of finished products.
It supports flexible configuration of 12/16/24 stations, adapts to customized molds of different specifications, and can quickly switch production of different styles of KPU products, meeting the production needs of multiple categories from small batches to scale.
The whole machine adopts a modular structure design, with key components selected from high-quality brand elements for stable and reliable operation. At the same time, standardized maintenance interfaces are reserved for easy daily inspection and maintenance, reducing long-term operation and maintenance costs.
Product Parameters
| Parameter | Model：HF-KPU-Line |
|---|---|
| Compatible Equipment | HF-LPM-1A1B Low-Pressure Foaming Machine |
| Number of Stations | 12/16/24 stations (optional) |
| Control System | PLC + touchscreen centralized control |
| Applicable Molds | Custom KPU molds (single/multi-cavity optional) |
| Production Cycle | 15–60s/mold (adjustable) |
| Total Installed Power | 15–30kW (depending on station configuration) |
| Rated Voltage | 380V |
| Overall Dimension | Customized (adaptable to workshop layout) |
| Certification | CE (EN 60204-1), ISO9001 |
Application Scenarios
Used for integrated production of KPU shoe labels, upper patches, sports equipment accessories, soft rubber ornaments, faux leather fabrics and other polyurethane products, covering processes including pouring, forming, cooling and demolding. It meets the needs from small-batch to mass production.
Core Advantages
The assembly line adopts an integrated design, which can be seamlessly connected with the HF-LPM-1A1B low-pressure foaming machine, realizing fully automated operations from raw material pouring, mold temperature control, forming and curing to cooling and demolding, greatly reducing manual intervention and improving production efficiency.
Equipped with multi-stage independent mold temperature control system, it can precisely adjust the mold temperature according to the characteristics of KPU raw materials, ensuring uniform and stable product forming, effectively avoiding defects such as material shortage, bubbles and deformation, and guaranteeing the yield of finished products.
It supports flexible configuration of 12/16/24 stations, adapts to customized molds of different specifications, and can quickly switch production of different styles of KPU products, meeting the production needs of multiple categories from small batches to scale.
The whole machine adopts a modular structure design, with key components selected from high-quality brand elements for stable and reliable operation. At the same time, standardized maintenance interfaces are reserved for easy daily inspection and maintenance, reducing long-term operation and maintenance costs.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
