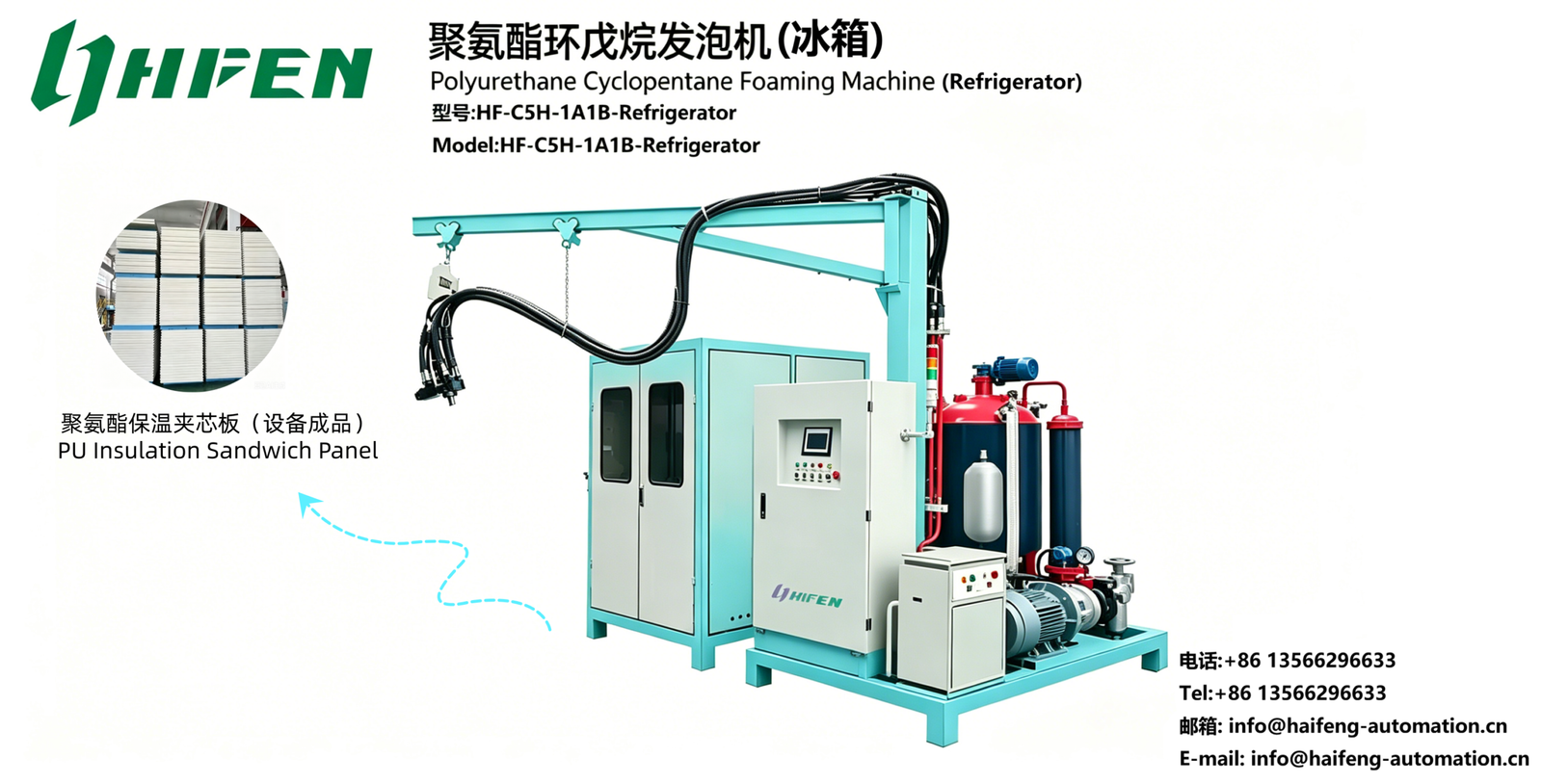

Polyurethane Cyclopentane Machine For Refrigerator
High Pressure Polyurethane Machine
Product ParametersParameterModel：HF-C5H-1A1B-RefrigeratorPouring Rate50～1000 g/sRaw Material RatioPolyether:Isocyanate=100:100~130Tank Capacity80 / 100 LMixing Head Speed8000～14000 r/minDynamic Metering Accuracy≤±0.3% (Full range)Tank Configuration1A1B Explosion-proof Tank + Independent Temperature Control + Circulation StirringMaterial Temperature Control20～45℃Mixing Pressure8～15 MPaVacuum DefoamingNoneCleaning...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-C5H-1A1B-Refrigerator |
|---|---|
| Pouring Rate | 50～1000 g/s |
| Raw Material Ratio | Polyether:Isocyanate=100:100~130 |
| Tank Capacity | 80 / 100 L |
| Mixing Head Speed | 8000～14000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B Explosion-proof Tank + Independent Temperature Control + Circulation Stirring |
| Material Temperature Control | 20～45℃ |
| Mixing Pressure | 8～15 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic air purge cleaning (Solvent-free & Eco-friendly) |
| Power | 4～6 kW |
| Control System | PLC + Touch Screen + Explosion-proof Control System |
| Safety Configuration | Explosion-proof Motor + Nitrogen Sealing + Leakage Monitoring + Emergency Stop |
| Applicable System | Polyurethane Cyclopentane CFC-free Flame Retardant Rigid Foam System |
| Warranty | 1 year |
| Certifications | CE, ISO9001, Explosion-proof Certificate(Ex) |
Application Scenarios
Specially designed for cyclopentane CFC-free environmental insulation layer foaming of refrigerators, freezers and commercial cold cabinets. It is suitable for high-density flame-retardant rigid foam pouring of refrigerator boxes and doors, meeting the core needs of environmental protection, CFC-free, low thermal conductivity, uniform foaming and safety explosion-proof, adapting to automatic production lines in home appliance industry.
Core Advantages
Special explosion-proof design for cyclopentane, with nitrogen sealing and leakage monitoring, safe and compliant production.
High-pressure precise mixing, uniform rigid foam density without voids, dual compliance of thermal insulation and flame retardancy.
Dynamic high-precision metering, accurate ratio, low raw material loss, suitable for CFC-free environmental production.
Solvent-free automatic cleaning, clean and environmental, in line with home appliance dust-free workshop production standards.
Product Parameters
| Parameter | Model：HF-C5H-1A1B-Refrigerator |
|---|---|
| Pouring Rate | 50～1000 g/s |
| Raw Material Ratio | Polyether:Isocyanate=100:100~130 |
| Tank Capacity | 80 / 100 L |
| Mixing Head Speed | 8000～14000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B Explosion-proof Tank + Independent Temperature Control + Circulation Stirring |
| Material Temperature Control | 20～45℃ |
| Mixing Pressure | 8～15 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic air purge cleaning (Solvent-free & Eco-friendly) |
| Power | 4～6 kW |
| Control System | PLC + Touch Screen + Explosion-proof Control System |
| Safety Configuration | Explosion-proof Motor + Nitrogen Sealing + Leakage Monitoring + Emergency Stop |
| Applicable System | Polyurethane Cyclopentane CFC-free Flame Retardant Rigid Foam System |
| Warranty | 1 year |
| Certifications | CE, ISO9001, Explosion-proof Certificate(Ex) |
Application Scenarios
Specially designed for cyclopentane CFC-free environmental insulation layer foaming of refrigerators, freezers and commercial cold cabinets. It is suitable for high-density flame-retardant rigid foam pouring of refrigerator boxes and doors, meeting the core needs of environmental protection, CFC-free, low thermal conductivity, uniform foaming and safety explosion-proof, adapting to automatic production lines in home appliance industry.
Core Advantages
Special explosion-proof design for cyclopentane, with nitrogen sealing and leakage monitoring, safe and compliant production.
High-pressure precise mixing, uniform rigid foam density without voids, dual compliance of thermal insulation and flame retardancy.
Dynamic high-precision metering, accurate ratio, low raw material loss, suitable for CFC-free environmental production.
Solvent-free automatic cleaning, clean and environmental, in line with home appliance dust-free workshop production standards.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
