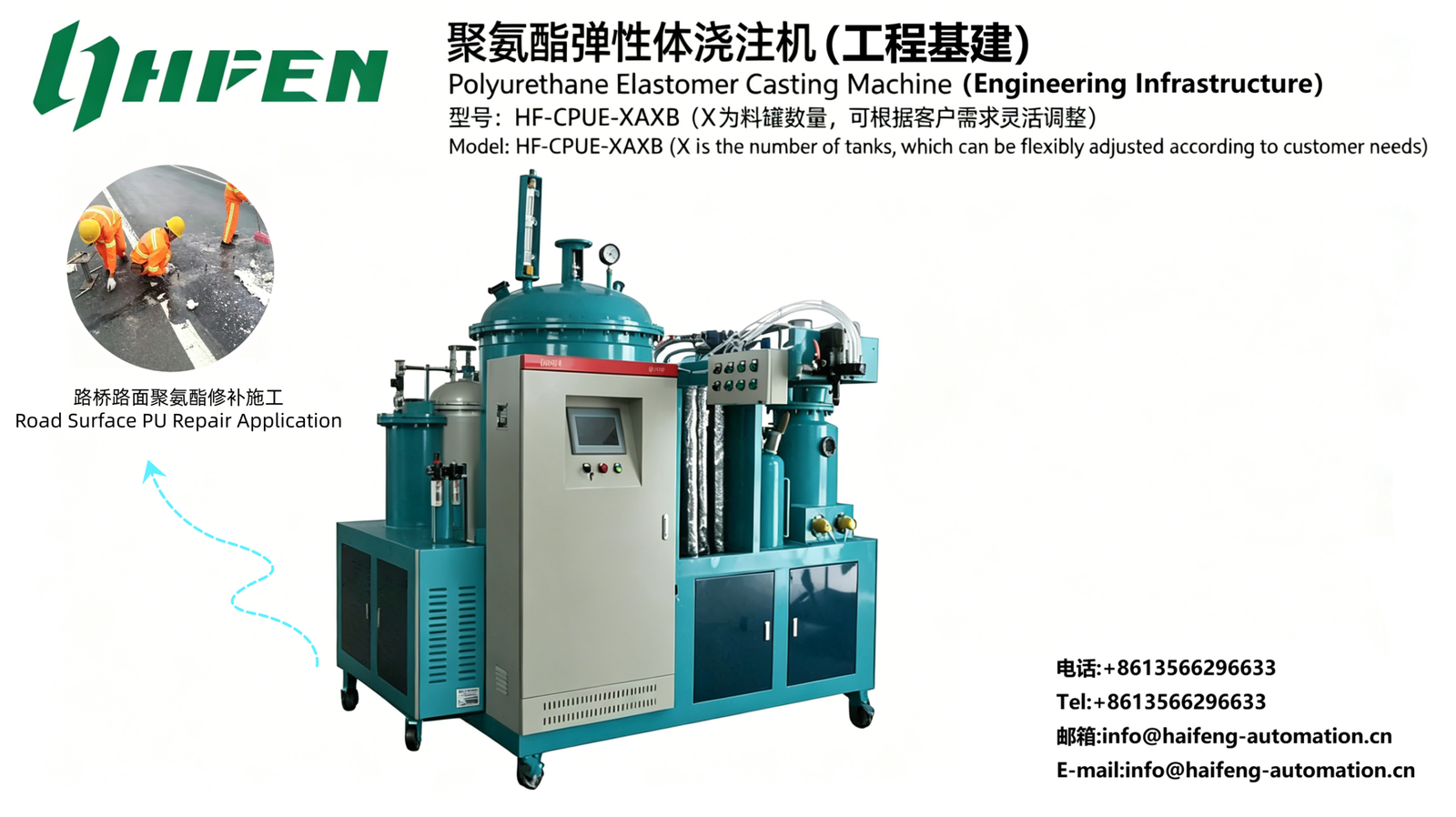

Polyurethane Elastomer Casting Machine For Bridge Engineering
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-2A2B-BridgePouring Rate150–2000 g/sRaw Material RatioPolyurethane Prepolymer : Curing Agent(MOCA)=100:10~14; Polyurethane Prepolymer : Curing Agent(BDO)=100:4~7Tank Capacity220/300 LMixing Head Speed6000～10000 r/minMetering Accuracy≤±0.5% (Full range)Tank Configuration2A2B two-component + anti-corrosion additive tankMaterial Temperature ControlTank A:...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Bridge |
|---|---|
| Pouring Rate | 150–2000 g/s |
| Raw Material Ratio | Polyurethane Prepolymer : Curing Agent(MOCA)=100:10~14; Polyurethane Prepolymer : Curing Agent(BDO)=100:4~7 |
| Tank Capacity | 220/300 L |
| Mixing Head Speed | 6000～10000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B(MOCA):90~115℃, (BDO):25~50℃ |
| Foaming Pressure | 1.0～3.0 MPa |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 8～18 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | Polyurethane Elastomer System |
| Warranty | 1 year |
| Certifications | CE, ISO9001,Highway Engineering Certification, Bridge Related Product Certification |
Application Scenarios

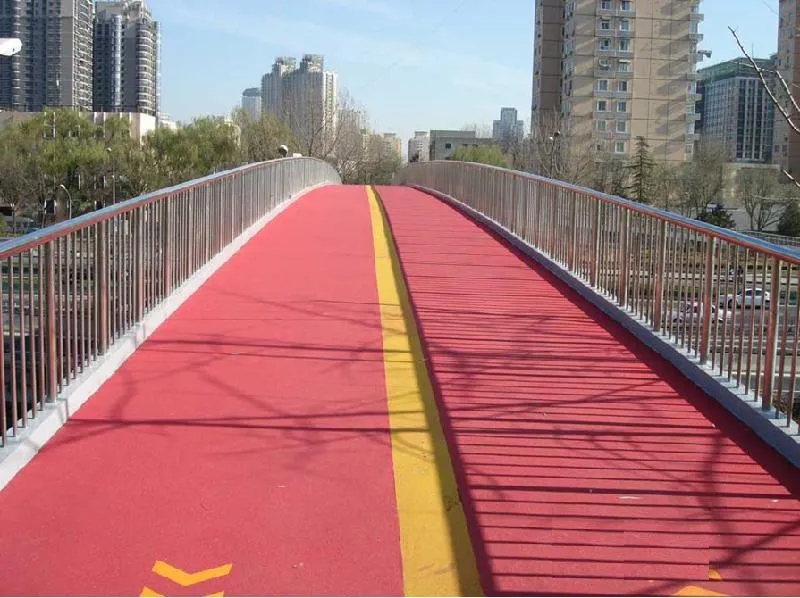

Specially designed for polyurethane elastomer pouring in bridge engineering, widely suitable for bridge bearing cushion, bridge deck crack repair, expansion joint sealing, pier anti-collision layer pouring. It resists outdoor rain, acid-base erosion and temperature changes, adapts to vehicle cyclic loads, bonds firmly with concrete and steel, effectively protects bridge structure, prolongs service life, and meets bridge high-altitude and outdoor batch construction needs.
Core Advantages
2A2B configuration with anti-corrosion additives, long-term resistance to rain and acid-base erosion, suitable for humid and harsh outdoor bridge conditions.
Large-flow and wide-pressure pouring, suitable for large-area construction and thick-layer filling, full and dense forming, meeting high-load bearing requirements.
Support MOCA/BDO dual curing agent switching, flexibly adapt to different construction scenarios such as bearing high load and bridge deck quick repair.
The machine is suitable for high-altitude mobile operation, with precise temperature control, efficient cleaning, firm bonding with substrates, ensuring construction stability.
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Bridge |
|---|---|
| Pouring Rate | 150–2000 g/s |
| Raw Material Ratio | Polyurethane Prepolymer : Curing Agent(MOCA)=100:10~14; Polyurethane Prepolymer : Curing Agent(BDO)=100:4~7 |
| Tank Capacity | 220/300 L |
| Mixing Head Speed | 6000～10000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B(MOCA):90~115℃, (BDO):25~50℃ |
| Foaming Pressure | 1.0～3.0 MPa |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 8～18 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | Polyurethane Elastomer System |
| Warranty | 1 year |
| Certifications | CE, ISO9001,Highway Engineering Certification, Bridge Related Product Certification |
Application Scenarios
Specially designed for polyurethane elastomer pouring in bridge engineering, widely suitable for bridge bearing cushion, bridge deck crack repair, expansion joint sealing, pier anti-collision layer pouring. It resists outdoor rain, acid-base erosion and temperature changes, adapts to vehicle cyclic loads, bonds firmly with concrete and steel, effectively protects bridge structure, prolongs service life, and meets bridge high-altitude and outdoor batch construction needs.
Core Advantages
2A2B configuration with anti-corrosion additives, long-term resistance to rain and acid-base erosion, suitable for humid and harsh outdoor bridge conditions.
Large-flow and wide-pressure pouring, suitable for large-area construction and thick-layer filling, full and dense forming, meeting high-load bearing requirements.
Support MOCA/BDO dual curing agent switching, flexibly adapt to different construction scenarios such as bearing high load and bridge deck quick repair.
The machine is suitable for high-altitude mobile operation, with precise temperature control, efficient cleaning, firm bonding with substrates, ensuring construction stability.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
