Polyurethane Elastomer Casting Machine For Hydraulic Seal
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-1A1B-SealPouring Rate20~500 g/sRaw Material RatioMOCA: 100:8~13; BDO: 100:3~5Tank Capacity50/100LMixing Head Speed8000–12000 r/minMetering Accuracy≤±0.3%(Full range)Tank Configuration1A1B two-component independent temperature controlMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum DefoamingVacuum ≤-0.095MPaCleaning SystemAutomatic circulation +...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Seal |
|---|---|
| Pouring Rate | 20~500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~5 |
| Tank Capacity | 50/100L |
| Mixing Head Speed | 8000–12000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5~7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001, ISO13485(Medical device) |
Application Scenarios

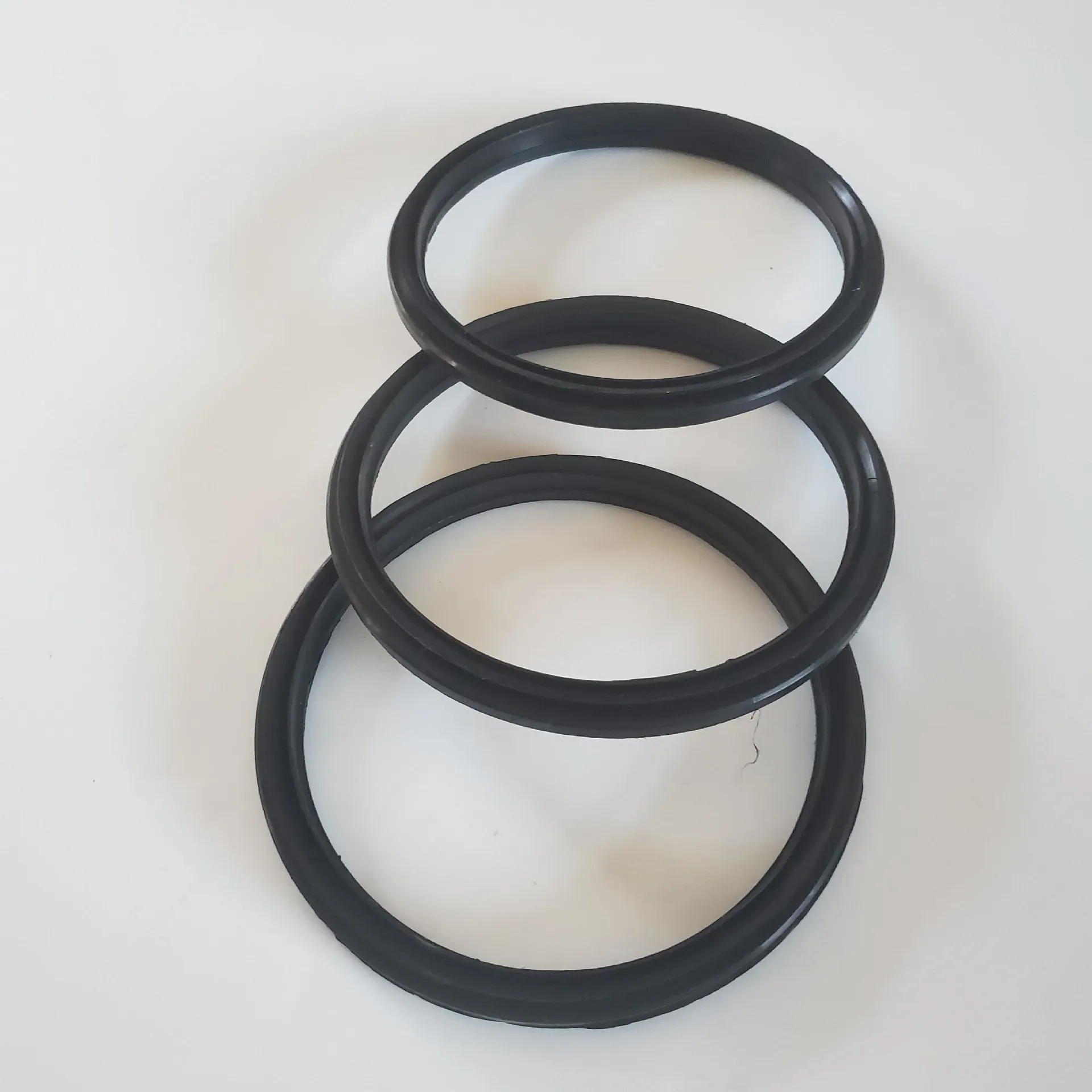

Specially designed for the production of precision seals for hydraulic systems, widely suitable for the casting of high-precision seals such as construction machinery, hydraulic equipment and oil seals. It supports BDO hydrolysis-resistant formula switching, compatible with various water-based and oil-based hydraulic media, meeting the core production requirements of high precision, high wear resistance and anti-leakage for hydraulic seals.
Core Advantages
Support flexible switching of MOCA/BDO dual chain extenders, balancing sealing accuracy with oil and hydrolysis resistance.
Dynamic full-range ultra-high precision metering ensures uniform seal size and effectively improves sealing reliability.
Small flow is precisely suitable for small sealing molds, with high raw material utilization and reduced production loss.
1A1B independent temperature control design, simple operation, suitable for small-batch, multi-specification precision seal production.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneElastomerCastingMachine #HydraulicSealEquipment #PrecisionOilSealCastingMachine
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Seal |
|---|---|
| Pouring Rate | 20~500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~5 |
| Tank Capacity | 50/100L |
| Mixing Head Speed | 8000–12000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5~7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001, ISO13485(Medical device) |
Application Scenarios
Specially designed for the production of precision seals for hydraulic systems, widely suitable for the casting of high-precision seals such as construction machinery, hydraulic equipment and oil seals. It supports BDO hydrolysis-resistant formula switching, compatible with various water-based and oil-based hydraulic media, meeting the core production requirements of high precision, high wear resistance and anti-leakage for hydraulic seals.
Core Advantages
Support flexible switching of MOCA/BDO dual chain extenders, balancing sealing accuracy with oil and hydrolysis resistance.
Dynamic full-range ultra-high precision metering ensures uniform seal size and effectively improves sealing reliability.
Small flow is precisely suitable for small sealing molds, with high raw material utilization and reduced production loss.
1A1B independent temperature control design, simple operation, suitable for small-batch, multi-specification precision seal production.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneElastomerCastingMachine #HydraulicSealEquipment #PrecisionOilSealCastingMachine
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
