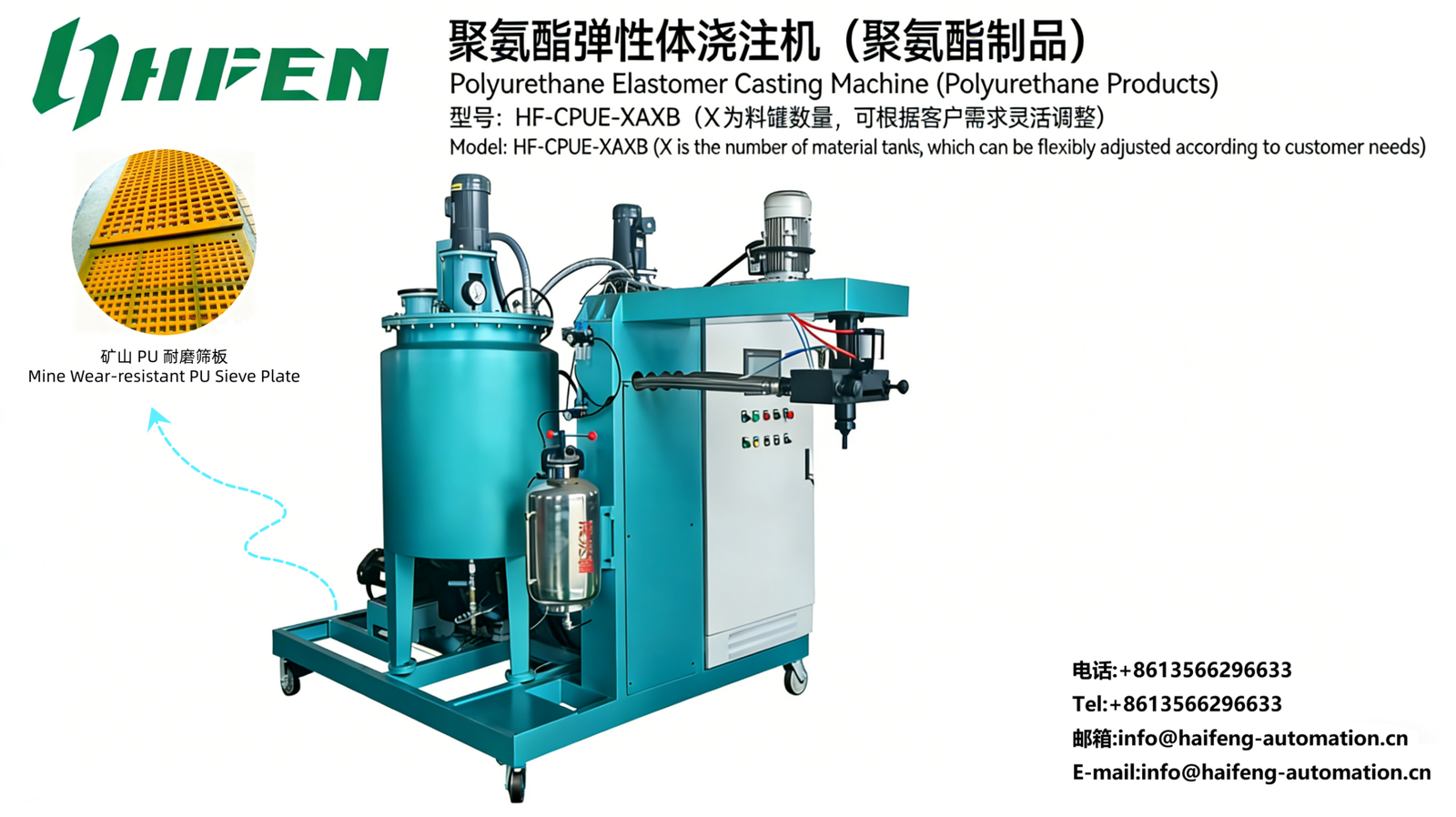

Polyurethane Elastomer Casting Machine For Mine Screen Plate
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-2A2B-ScreenPouring Rate100–1500 g/sRaw Material RatioMOCA: 100:10~13; BDO: 100:4~6Tank Capacity220LMixing Head Speed7000–11000 r/minMetering Accuracy≤±0.5% (Full range)Tank Configuration2A2B two-component + wear & impact resistant additive tankMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Screen |
|---|---|
| Pouring Rate | 100–1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220L |
| Mixing Head Speed | 7000–11000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + wear & impact resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

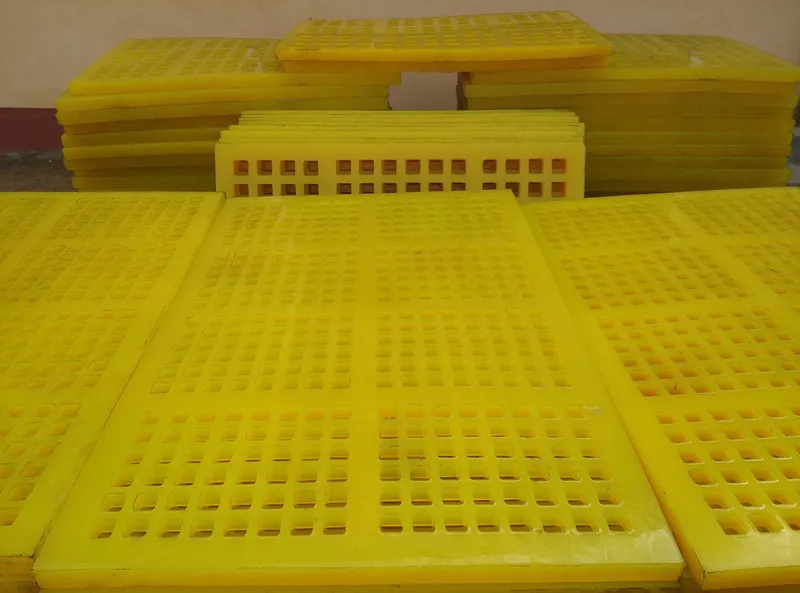

Specially designed for large-scale production of polyurethane screen plates in mining, metallurgy and coal industries, widely suitable for harsh working conditions such as ore screening, coal screening and metallurgical raw material classification. It can achieve high strength, impact resistance and wear resistance through formula switching, meeting the core production requirements of high load, long life and tear resistance for mine screen plates.
Core Advantages
2A2B configuration with wear and impact resistant additives, greatly improving the wear and tear resistance of screen plates, suitable for harsh mining screening conditions.
Large-flow stable pouring, perfectly suitable for large-size screen plate molds, full filling without holes, ensuring uniform product structure.
Support MOCA/BDO dual chain extender switching, flexibly adjust product hardness and strength, suitable for different screening scenarios.
Stable and reliable operation, suitable for mass continuous production, effectively improving the production efficiency and yield of mine screen plates.
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Screen |
|---|---|
| Pouring Rate | 100–1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220L |
| Mixing Head Speed | 7000–11000 r/min |
| Metering Accuracy | ≤±0.5% (Full range) |
| Tank Configuration | 2A2B two-component + wear & impact resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for large-scale production of polyurethane screen plates in mining, metallurgy and coal industries, widely suitable for harsh working conditions such as ore screening, coal screening and metallurgical raw material classification. It can achieve high strength, impact resistance and wear resistance through formula switching, meeting the core production requirements of high load, long life and tear resistance for mine screen plates.
Core Advantages
2A2B configuration with wear and impact resistant additives, greatly improving the wear and tear resistance of screen plates, suitable for harsh mining screening conditions.
Large-flow stable pouring, perfectly suitable for large-size screen plate molds, full filling without holes, ensuring uniform product structure.
Support MOCA/BDO dual chain extender switching, flexibly adjust product hardness and strength, suitable for different screening scenarios.
Stable and reliable operation, suitable for mass continuous production, effectively improving the production efficiency and yield of mine screen plates.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
