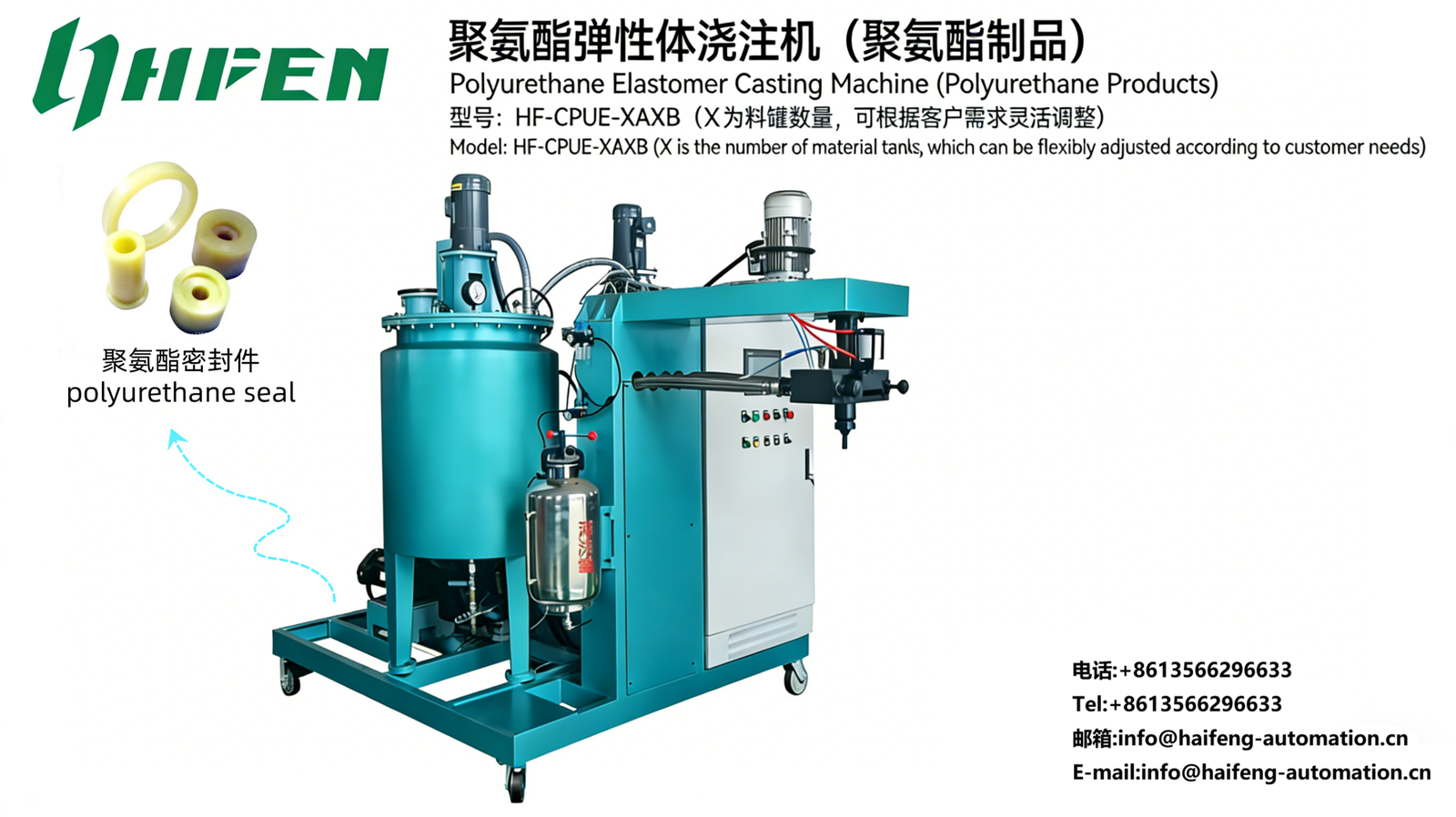

Polyurethane Elastomer Casting Machine For Polyurethane Seals
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-1A1B-Seal-PUPouring Rate20～500 g/sRaw Material RatioMOCA: 100:8~13; BDO: 100:3~6/td>Tank Capacity50 / 100 / 150 LMixing Head Speed8000～12000 r/minMetering Accuracy≤±0.3%% (Full range)Tank Configuration1A1B two-component independent temperature controlMaterial Temperature ControlTank A: 30~80℃; Tank B:...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Seal-PU |
|---|---|
| Pouring Rate | 20～500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~6/td> |
| Tank Capacity | 50 / 100 / 150 L |
| Mixing Head Speed | 8000～12000 r/min |
| Metering Accuracy | ≤±0.3%% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5～7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

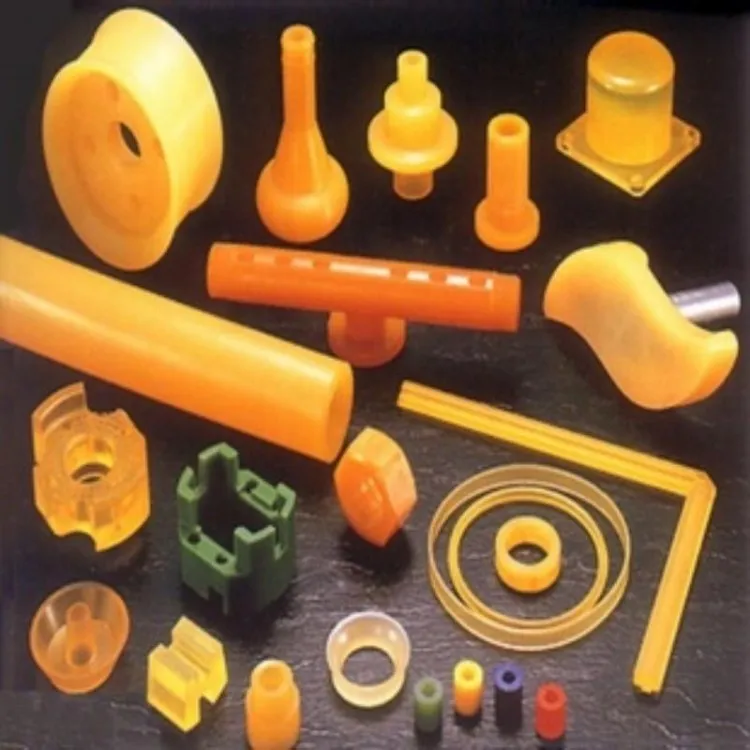

Specially designed for large-scale production of industrial polyurethane seals, widely suitable for casting of general seals in industrial equipment, hydraulic systems, construction machinery. Compatible with MOCA high-strength and BDO hydrolysis-resistant dual formulas, meeting the core production needs of static/dynamic sealing, oil resistance, wear resistance and leakage prevention, suitable for precision manufacturing of multi-specification small seals.
Core Advantages
Support one-key switching of MOCA/BDO dual chain extenders, one machine covers the production process of various seals.
Dynamic full-range ultra-high precision metering, products without bubbles and burrs, stable sealing performance without leakage.
Small flow is precisely suitable for small sealing molds, low raw material loss, effectively improving product yield.
1A1B independent temperature control design, simple and stable operation, suitable for small-batch, multi-specification seal flexible production.
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Seal-PU |
|---|---|
| Pouring Rate | 20～500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~6/td> |
| Tank Capacity | 50 / 100 / 150 L |
| Mixing Head Speed | 8000～12000 r/min |
| Metering Accuracy | ≤±0.3%% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5～7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for large-scale production of industrial polyurethane seals, widely suitable for casting of general seals in industrial equipment, hydraulic systems, construction machinery. Compatible with MOCA high-strength and BDO hydrolysis-resistant dual formulas, meeting the core production needs of static/dynamic sealing, oil resistance, wear resistance and leakage prevention, suitable for precision manufacturing of multi-specification small seals.
Core Advantages
Support one-key switching of MOCA/BDO dual chain extenders, one machine covers the production process of various seals.
Dynamic full-range ultra-high precision metering, products without bubbles and burrs, stable sealing performance without leakage.
Small flow is precisely suitable for small sealing molds, low raw material loss, effectively improving product yield.
1A1B independent temperature control design, simple and stable operation, suitable for small-batch, multi-specification seal flexible production.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
