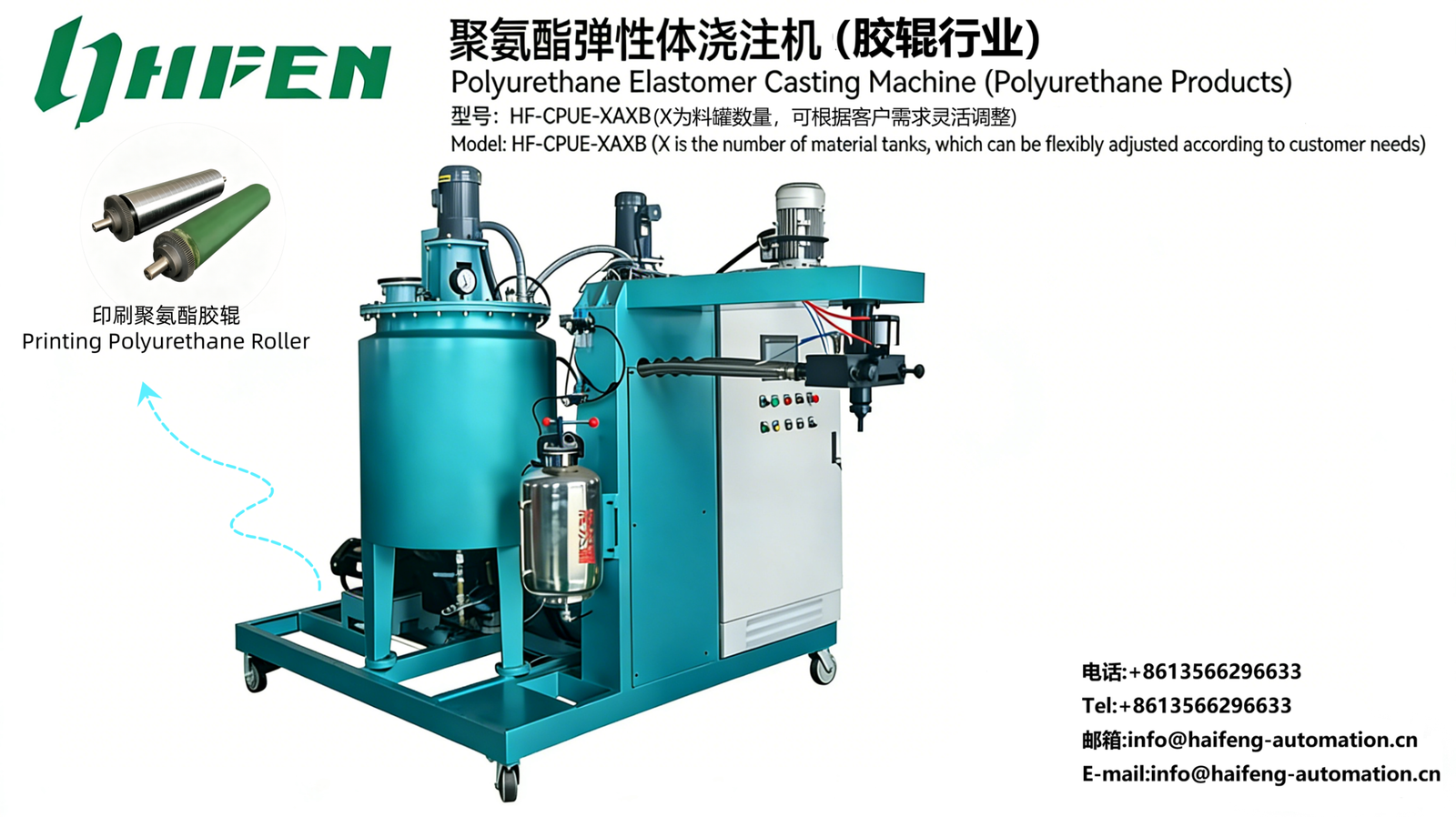

Polyurethane Elastomer Casting Machine For Printing Roller
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-2A2B-Roller-PrintPouring Rate50–1000 g/sRaw Material RatioMOCA: 100:9~12; BDO: 100:3~6Tank Capacity150 / 220 LMixing Head Speed7000–11000 r/minMetering Accuracy≤±0.4% (Full range)Tank Configuration2A2B two-component + color paste tankMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-Print |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000–11000 r/min |
| Metering Accuracy | ≤±0.4% (Full range) |
| Tank Configuration | 2A2B two-component + color paste tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 7.5–11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

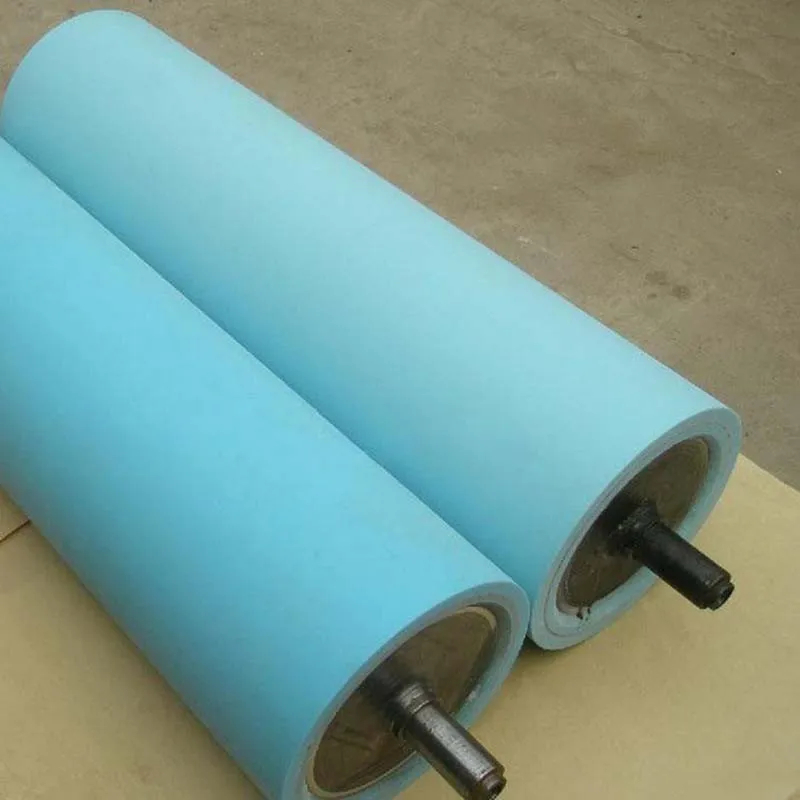

Specially built for polyurethane roller casting in the printing industry, widely suitable for high-speed printing equipment such as offset printing, gravure printing, flexo printing and UV printing. It can stably produce special accessories such as UV ink rollers and offset rollers, meeting the production requirements of wear resistance, ink corrosion resistance, high elasticity and uniform ink transfer, effectively ensuring clear printing patterns, no ink leakage and no scratches, and adapting to the efficient and stable operation of printing production lines.
Core Advantages
2A2B configuration with color paste tank, flexibly adjust multi-color rollers, compatible with wear-resistant additives, suitable for UV printing and other special working conditions.
Dynamic high-precision metering and precise temperature control, uniform rubber layer thickness and hardness, stable operation, effectively improving printing yield.
Support MOCA/BDO dual chain extender switching, balance high wear resistance and high resilience as needed, suitable for production of various printing rollers.
Automatic cleaning system avoids color cross-contamination, reduces raw material waste, and adapts to small-batch, multi-specification and multi-color roller flexible production.
Product Parameters
| Parameter | Model：HF-CPUE-2A2B-Roller-Print |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000–11000 r/min |
| Metering Accuracy | ≤±0.4% (Full range) |
| Tank Configuration | 2A2B two-component + color paste tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 7.5–11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially built for polyurethane roller casting in the printing industry, widely suitable for high-speed printing equipment such as offset printing, gravure printing, flexo printing and UV printing. It can stably produce special accessories such as UV ink rollers and offset rollers, meeting the production requirements of wear resistance, ink corrosion resistance, high elasticity and uniform ink transfer, effectively ensuring clear printing patterns, no ink leakage and no scratches, and adapting to the efficient and stable operation of printing production lines.
Core Advantages
2A2B configuration with color paste tank, flexibly adjust multi-color rollers, compatible with wear-resistant additives, suitable for UV printing and other special working conditions.
Dynamic high-precision metering and precise temperature control, uniform rubber layer thickness and hardness, stable operation, effectively improving printing yield.
Support MOCA/BDO dual chain extender switching, balance high wear resistance and high resilience as needed, suitable for production of various printing rollers.
Automatic cleaning system avoids color cross-contamination, reduces raw material waste, and adapts to small-batch, multi-specification and multi-color roller flexible production.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
