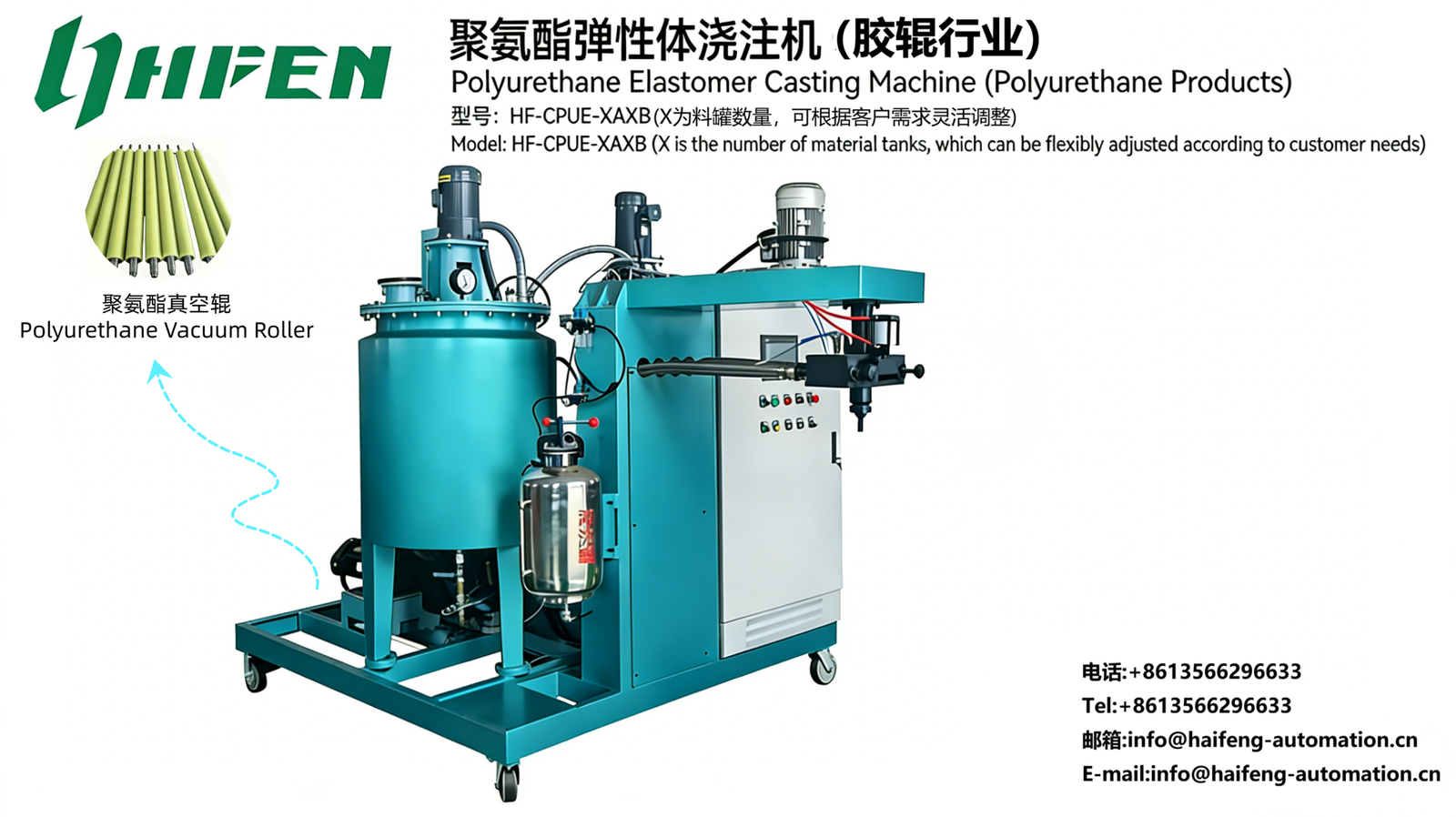

Polyurethane Elastomer Casting Machine For Vacuum Roller
Elastomer Polyurethane Machine
Product ParametersParameterModel：HF-CPUE-1A1B-RollerPouring Rate30–700 g/sRaw Material RatioMOCA: 100:8~11; BDO: 100:3~5Tank Capacity100 / 150 LMixing Head Speed8000–12000 r/minMetering Accuracy≤±0.3%(Full range)Tank Configuration1A1B two-component independent temperature controlMaterial Temperature ControlTank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃)Vacuum DefoamingVacuum ≤-0.098MPaCleaning...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Roller |
|---|---|
| Pouring Rate | 30–700 g/s |
| Raw Material Ratio | MOCA: 100:8~11; BDO: 100:3~5 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 8000–12000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.098MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5~7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

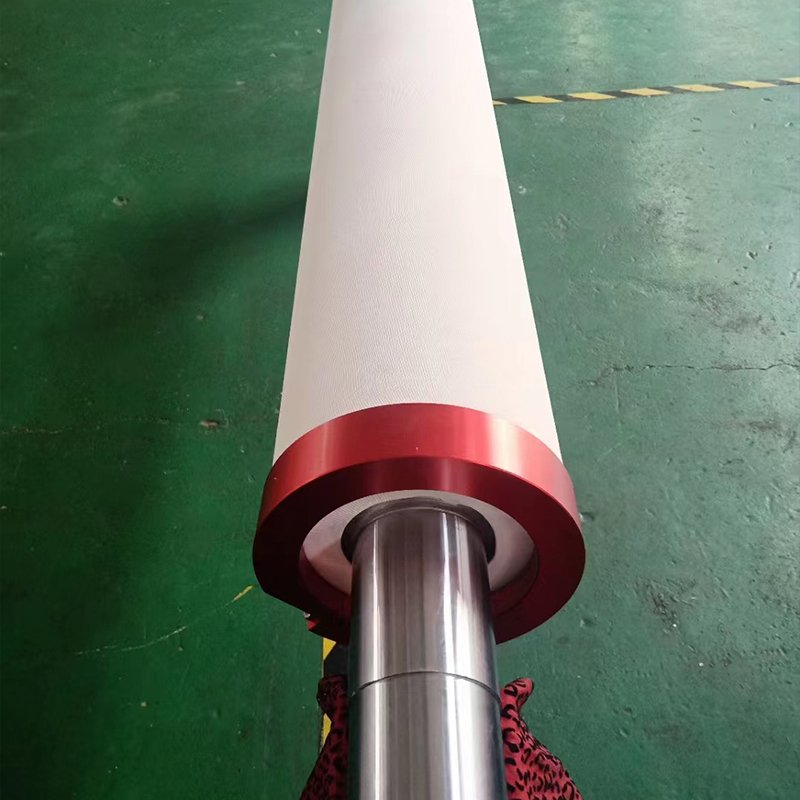

Specially designed for large-scale production of polyurethane rollers for vacuum equipment, widely suitable for vacuum coating, vacuum drying, vacuum conveying and other precision vacuum equipment. It can stably produce vacuum rollers with high sealing, high elasticity and high wear resistance. The rubber layer is dense and free of bubbles, effectively ensuring the sealing and stability of vacuum equipment, and meeting the stringent production requirements of precision vacuum working conditions.
Core Advantages
High-equipped vacuum defoaming system, dense rubber layer without bubbles, greatly improving vacuum sealing stability, suitable for various vacuum equipment working conditions.
Dynamic full-range high-precision metering, uniform rubber layer thickness and smooth surface, high sealing fit, ensuring vacuum sealing effect.
Support MOCA/BDO dual chain extender switching, flexibly balance high wear resistance and high resilience, prolong roller service life.
1A1B independent temperature control formula design, simple operation and efficient production change, suitable for small-batch multi-specification vacuum roller precision production.
Product Parameters
| Parameter | Model：HF-CPUE-1A1B-Roller |
|---|---|
| Pouring Rate | 30–700 g/s |
| Raw Material Ratio | MOCA: 100:8~11; BDO: 100:3~5 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 8000–12000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.098MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5~7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for large-scale production of polyurethane rollers for vacuum equipment, widely suitable for vacuum coating, vacuum drying, vacuum conveying and other precision vacuum equipment. It can stably produce vacuum rollers with high sealing, high elasticity and high wear resistance. The rubber layer is dense and free of bubbles, effectively ensuring the sealing and stability of vacuum equipment, and meeting the stringent production requirements of precision vacuum working conditions.
Core Advantages
High-equipped vacuum defoaming system, dense rubber layer without bubbles, greatly improving vacuum sealing stability, suitable for various vacuum equipment working conditions.
Dynamic full-range high-precision metering, uniform rubber layer thickness and smooth surface, high sealing fit, ensuring vacuum sealing effect.
Support MOCA/BDO dual chain extender switching, flexibly balance high wear resistance and high resilience, prolong roller service life.
1A1B independent temperature control formula design, simple operation and efficient production change, suitable for small-batch multi-specification vacuum roller precision production.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
