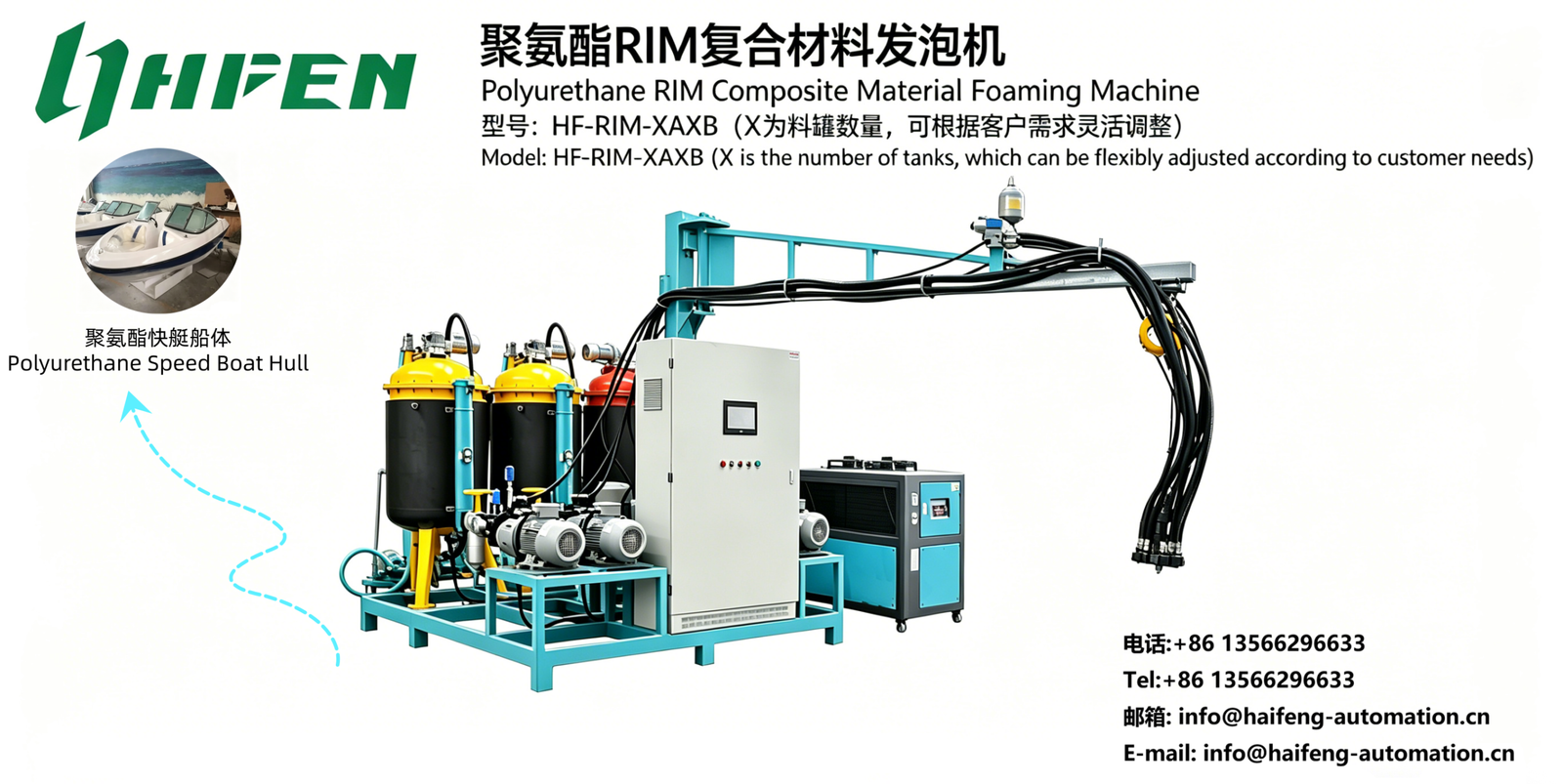

Polyurethane RIM Composite Machine For Surf Boat Hull
Polyurethane Machines
Product ParametersParameterModel：HF-RIM-1A1B-SurfBoatPouring Rate50～500 g/sMix RatioPolyether: Isocyanate = 100:90~110Tank Capacity200L / 300L (Optional, Per Tank)Dosing Accuracy≤±0.3% (Full Dynamic Range)Tank Configuration1A1B Two-Component Independent Temp Control + Circulation StirringTemperature Control25～45℃Mixing Pressure150～200 barVenting SystemMold Negative Pressure...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-RIM-1A1B-SurfBoat |
|---|---|
| Pouring Rate | 50～500 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Carbon Fiber / Fiberglass Waterproof & Corrosion-Resistant RIM Composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios
Suitable for molding surfboards, small leisure boat hulls, water sports equipment and other products. It can be used with carbon fiber and corrosion-resistant fiber materials to enhance the waterproof, impact-resistant and seawater corrosion-resistant properties of finished products, meeting the dual requirements of lightweight and structural strength for water supplies.
Core Advantages
Strong adaptability to special composite materials, waterproof and corrosion-resistant for wading scenarios.
High-pressure homogeneous mixing, less material delamination, stronger overall structural integrity.
Stable and adjustable flow rate for integral molding of small and medium-sized boat hulls.
Flexible process parameter settings, supporting small-batch customization and multi-specification production.
Product Parameters
| Parameter | Model：HF-RIM-1A1B-SurfBoat |
|---|---|
| Pouring Rate | 50～500 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Carbon Fiber / Fiberglass Waterproof & Corrosion-Resistant RIM Composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Application Scenarios
Suitable for molding surfboards, small leisure boat hulls, water sports equipment and other products. It can be used with carbon fiber and corrosion-resistant fiber materials to enhance the waterproof, impact-resistant and seawater corrosion-resistant properties of finished products, meeting the dual requirements of lightweight and structural strength for water supplies.
Core Advantages
Strong adaptability to special composite materials, waterproof and corrosion-resistant for wading scenarios.
High-pressure homogeneous mixing, less material delamination, stronger overall structural integrity.
Stable and adjustable flow rate for integral molding of small and medium-sized boat hulls.
Flexible process parameter settings, supporting small-batch customization and multi-specification production.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
