Polyurethane Sandwich Panel Production Line For Batch
High Pressure Polyurethane Machine
Product ParametersParameterModel：HF-CLPS-BatchSingle Mold Forming Cycle3～10 min/panelMixing Pressure8～15 MPaDynamic Metering Accuracy≤±0.3% (Full range)Raw Material RatioPolyether : Isocyanate = 100:100~130Tank Capacity100 / 200 LMaterial Temperature Control20～45℃ (Two-component Independent Control)Molding SystemHydraulic Mold Clamping + Precise...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CLPS-Batch |
|---|---|
| Single Mold Forming Cycle | 3～10 min/panel |
| Mixing Pressure | 8～15 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 100 / 200 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Molding System | Hydraulic Mold Clamping + Precise Temperature Control |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Single Mold Precise Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 20～300 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

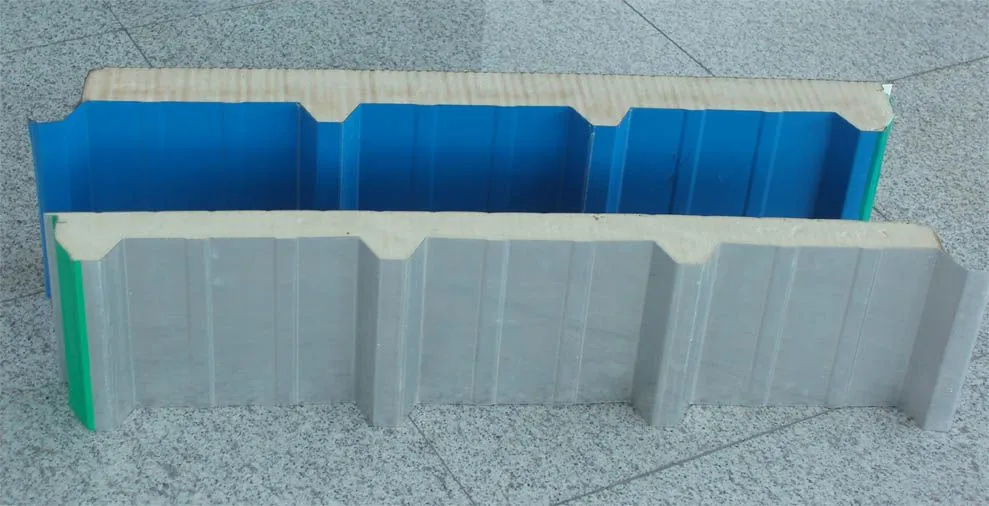

Specially designed for the production of customized polyurethane sandwich panels, special-shaped panels and small-batch special-specification panels. It is suitable for laboratory sampling, non-standard building materials and special insulation panel production, meeting the core needs of flexible mold replacement, panel customization and dense cells, and adapting to small and medium-batch, multi-variety flexible production scenarios.
Core Advantages
Batch molding, convenient mold replacement, quickly suitable for the production of non-standard/special-shaped/customized panels.
Precise single mold foaming control, wide panel thickness range, stable and defect-free forming quality.
Small equipment footprint and low investment cost, suitable for small and medium capacity and flexible production needs.
Solvent-free automatic cleaning, environmentally friendly and clean, simple operation, easy for new users to master.
Tags
#HaifengAutomation #PolyurethaneFoamPouringMachine #MedicalSpongeEquipment #MedicalFoamPouringMachine #WoundDressingProductionEquipment #SterileFoamPouringMachine #HighPrecisionMedicalFoamMachine
Product Parameters
| Parameter | Model：HF-CLPS-Batch |
|---|---|
| Single Mold Forming Cycle | 3～10 min/panel |
| Mixing Pressure | 8～15 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 100 / 200 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Molding System | Hydraulic Mold Clamping + Precise Temperature Control |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Single Mold Precise Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 20～300 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for the production of customized polyurethane sandwich panels, special-shaped panels and small-batch special-specification panels. It is suitable for laboratory sampling, non-standard building materials and special insulation panel production, meeting the core needs of flexible mold replacement, panel customization and dense cells, and adapting to small and medium-batch, multi-variety flexible production scenarios.
Core Advantages
Batch molding, convenient mold replacement, quickly suitable for the production of non-standard/special-shaped/customized panels.
Precise single mold foaming control, wide panel thickness range, stable and defect-free forming quality.
Small equipment footprint and low investment cost, suitable for small and medium capacity and flexible production needs.
Solvent-free automatic cleaning, environmentally friendly and clean, simple operation, easy for new users to master.
Tags
#HaifengAutomation #PolyurethaneFoamPouringMachine #MedicalSpongeEquipment #MedicalFoamPouringMachine #WoundDressingProductionEquipment #SterileFoamPouringMachine #HighPrecisionMedicalFoamMachine
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
