Polyurethane Sandwich Panel Production Line For Continuous
High Pressure Polyurethane Machine
Product ParametersParameterModel：HF-CLPS-ContinuousProduction Line Speed1～15 m/min (Stepless Speed Regulation)Mixing Pressure10～18 MPaDynamic Metering Accuracy≤±0.3% (Full range)Raw Material RatioPolyether : Isocyanate = 100:100~130Tank Capacity200 / 300 LMaterial Temperature Control20～45℃ (Two-component Independent Control)Heating SystemPrecise Roller/Mold Temperature...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-CLPS-Continuous |
|---|---|
| Production Line Speed | 1～15 m/min (Stepless Speed Regulation) |
| Mixing Pressure | 10～18 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 200 / 300 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Heating System | Precise Roller/Mold Temperature Control |
| Cleaning System | Automatic Circulation + Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Full-line Linkage Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 30～200 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios

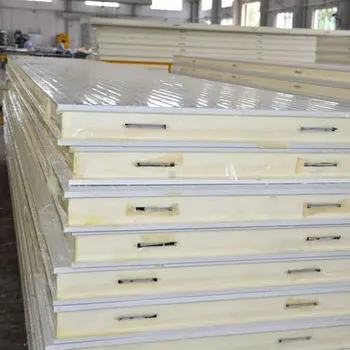

Specially designed for large-scale continuous production of polyurethane sandwich panels used in building exterior wall insulation, cold storage walls, clean workshops and prefabricated buildings. It is suitable for composite of various face materials such as color steel, aluminum foil and paper honeycomb, meeting the core needs of uniform panel density, thermal insulation, flame retardancy, compression resistance and standard size, and adapting to large-scale automatic production lines in the building materials industry.
Core Advantages
Full-line continuous automatic production with stepless speed adjustment, greatly improving panel production efficiency and capacity.
High-pressure precise mixing and foaming, delicate and uniform panel cells, no voids and no faults, up-to-standard thermal insulation and compression resistance.
Accurate two-component metering and ratio, high raw material utilization rate, reducing production loss and cost.
Full-line linkage intelligent control, easy to operate, suitable for rapid switching production of multi-specification and multi-thickness panels.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneSandwichPanelProductionLine #ContinuousPanelProductionLine #InsulationPanelEquipment
Product Parameters
| Parameter | Model：HF-CLPS-Continuous |
|---|---|
| Production Line Speed | 1～15 m/min (Stepless Speed Regulation) |
| Mixing Pressure | 10～18 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 200 / 300 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Heating System | Precise Roller/Mold Temperature Control |
| Cleaning System | Automatic Circulation + Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Full-line Linkage Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 30～200 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially designed for large-scale continuous production of polyurethane sandwich panels used in building exterior wall insulation, cold storage walls, clean workshops and prefabricated buildings. It is suitable for composite of various face materials such as color steel, aluminum foil and paper honeycomb, meeting the core needs of uniform panel density, thermal insulation, flame retardancy, compression resistance and standard size, and adapting to large-scale automatic production lines in the building materials industry.
Core Advantages
Full-line continuous automatic production with stepless speed adjustment, greatly improving panel production efficiency and capacity.
High-pressure precise mixing and foaming, delicate and uniform panel cells, no voids and no faults, up-to-standard thermal insulation and compression resistance.
Accurate two-component metering and ratio, high raw material utilization rate, reducing production loss and cost.
Full-line linkage intelligent control, easy to operate, suitable for rapid switching production of multi-specification and multi-thickness panels.
Tags
#HaifengAutomation #HaifengPolyurethane #PolyurethaneSandwichPanelProductionLine #ContinuousPanelProductionLine #InsulationPanelEquipment
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
