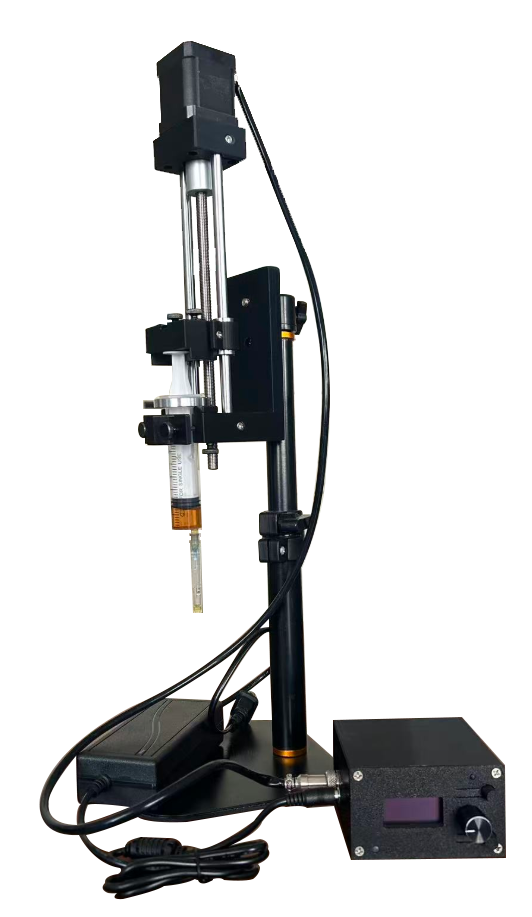

The syringe pump is a high-precision, programmable automated device for fluid delivery. It drives the syringe plunger via a motor to deliver fluid at a controllable rate, enabling precise regulation of fluid flow and dispensing volume. It supports full-range delivery control from microliter-level to conventional flow rates with excellent accuracy and repeatability. Widely used in life sciences, pharmaceutical R&D, chemical synthesis, industrial precision liquid dispensing and other fields, it is a core…
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Description
The syringe pump is a high-precision, programmable automated device for fluid delivery. It drives the syringe plunger via a motor to deliver fluid at a controllable rate, enabling precise regulation of fluid flow and dispensing volume. It supports full-range delivery control from microliter-level to conventional flow rates with excellent accuracy and repeatability. Widely used in life sciences, pharmaceutical R&D, chemical synthesis, industrial precision liquid dispensing and other fields, it is a core device for precision fluid delivery in laboratory experiments and industrial production.
Product Parameters
| Item | Model IP-1S (Single Channel) | Model IP-4M (Four-Channel) |
|---|---|---|
| Flow Range | 0.001 μL/min – 50 mL/min | 0.001 μL/min – 50 mL/min(Per Channel) |
| Flow Accuracy | ≤±0.5% | ≤±0.5% |
| Repeatability | ≤±0.2% | ≤±0.2% |
| Compatible Syringe Specifications | 1mL–50mL | 1mL–50mL(Per Channel) |
| Maximum Back Pressure | 0–500 psi (Adjustable alarm threshold) | 0–500 psi (Adjustable alarm threshold) |
| Communication Interface | USB, RS-232 | USB,RS-485,Ethernet,Digital I/O |
| Power Supply | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz |
| Total Machine Power | 30 W | 100 W |
| Overall Dimensions (L×W×H) | 280×200×150 mm | 420×320×200 mm |
| Equipment Weight | 3.5 kg | 8.2 kg |
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
