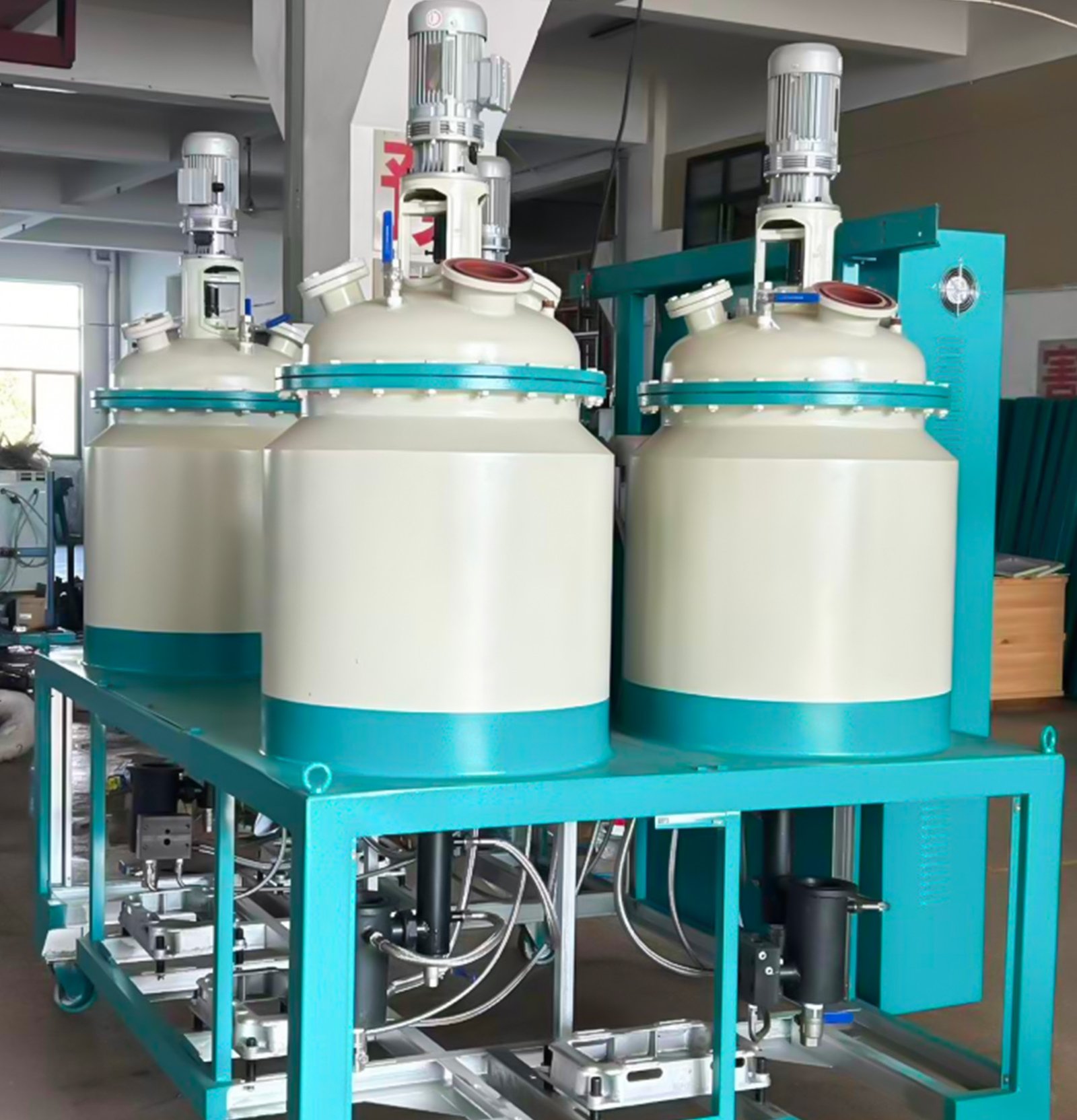

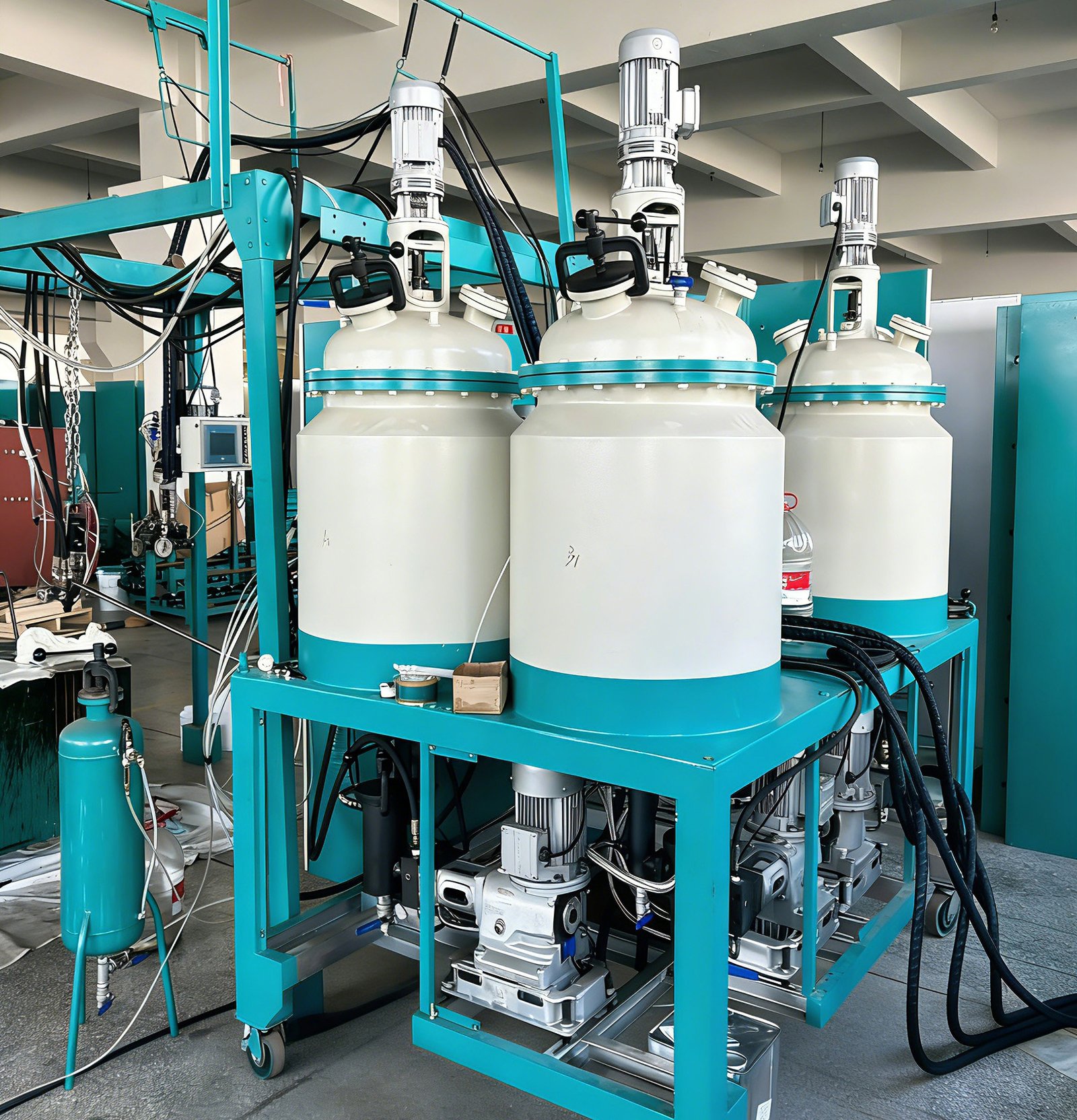

2A1B Low Pressure Foaming Machine
Low Pressure Polyurethane Machine
The 2A1B low-pressure foaming machine is specialized equipment for producing polyurethane foam using two different polyols (A1, A2) and one isocyanate (B). Operating under low pressure (typically below 10 bar), it enables accurate injection, mixing, and curing in molds, making it suitable for multi-material formulations and medium-scale production runs where material flexibility and consistency are critical.
Key Features
- Precise & Flexible Metering System
- Excellent Mixing Uniformity
- Easy Operation & Smart Control
- Energy-Efficient Design
Product Description
The 2A1B low-pressure foaming machine is specialized equipment for producing polyurethane foam using two different polyols (A1, A2) and one isocyanate (B). Operating under low pressure (typically below 10 bar), it enables accurate injection, mixing, and curing in molds, making it suitable for multi-material formulations and medium-scale production runs where material flexibility and consistency are critical.
Product Parameters
| Parameter | Model: LJJ-2A1B-120C |
|---|---|
| Feed Tanks | 3 (A1,A2, B) |
| Tank Volume (L) | 120 |
| Rated Voltage (V) | 380 |
| Unit Power (kW) | 13 |
| Metering Pumps | 3 (2 for A, 1 for B) |
| Pump Speed Range (r/min) | 50-250 |
| Mixing Head Speed (r/min) | 8600 (fixed or adjustable) |
| Metering Accuracy (%) | ≤ ±1.0 |
| Max. Output (g/s) | 120 |
| Control System | Integrated PC + touchscreen |
| Remote Interface | Optional (RS485/Ethernet) |
| Cleaning System | Automatic solvent purge |
Application Areas
| Footwear: Single-density shoe soles, sandal straps, basic insoles. |  |
| Furniture & Bedding: Standard mattress cores, sofa cushion blocks, pillow interiors. |  |
| Packaging: Protective foam blocks, corner pads, shaped inserts. |  |
| Industrial: Simple gaskets, sealing strips, vibration-damping pads. |  |
| General Consumer Goods: Basic sports mats, simple toy components, household padding. |  |
Technical Highlights
Recipe Management
Store and recall multiple formulations for repeatable production.
Data Logging & Curves
Track process parameters and ensure full traceability.
Remote Support Ready
Enable real-time diagnostics and off-site technical guidance.
Color-Mixing Option
Integrated colorant dosing for flexible product styling.
Why Choose Haifeng's 2A1B Low-Pressure Foaming Machine?
Precision & Flexibility
Handles two different A components with one B, enabling complex formulations without cross-contamination.
Energy Savings
Low-pressure operation cuts power costs, ideal for continuous production environments.
Ease of Use:
Intuitive touchscreen control and automated cleaning reduce operator training and downtime.
Proven Performance:
Trusted by manufacturers worldwide for reliability, consistency, and after-sales support.
Ready to Upgrade Your Polyurethane Production?
Haifeng supplies polyurethane machinery, robotic systems, and complete production solutions backed by process evaluation, commissioning, training, and lifecycle support.
