27 Products
Industrial equipment engineered for reliable polyurethane production, process control, and factory automation.
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-1A1B-R-RefrigeratorPouring Rate200~5000g/sRaw Material Ratio1:1~3:1 continuously adjustableTank Capacity120/220/500LMixing Head Speed10000~18000r/min (Common: 12000~15000r/min)Metering Accuracy≤±1.0%(Full range)Tank Configuration1A1BMaterial Temperature Control20~60℃ precise temperature controlCleaning SystemAutomatic air-purge + pipeline…
View Details
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-2A2B-Soft-SeatDischarging/Pouring Rate50–2000 g/sMixing Ratio1:1~1:4 continuously adjustableTank Capacity120/220/500LMixing Head Speed0~8600r/min (Common: 3500~5000r/min)Metering Accuracy≤±0.1%(Full range)Tank Configuration2A2B (Four tanks)Cleaning SystemAutomatic air-purge cleaning (solvent-free, eco-friendly)Power7.5~11kWWarranty1 yearCertificationsCE, ISO9001Application…
View Details

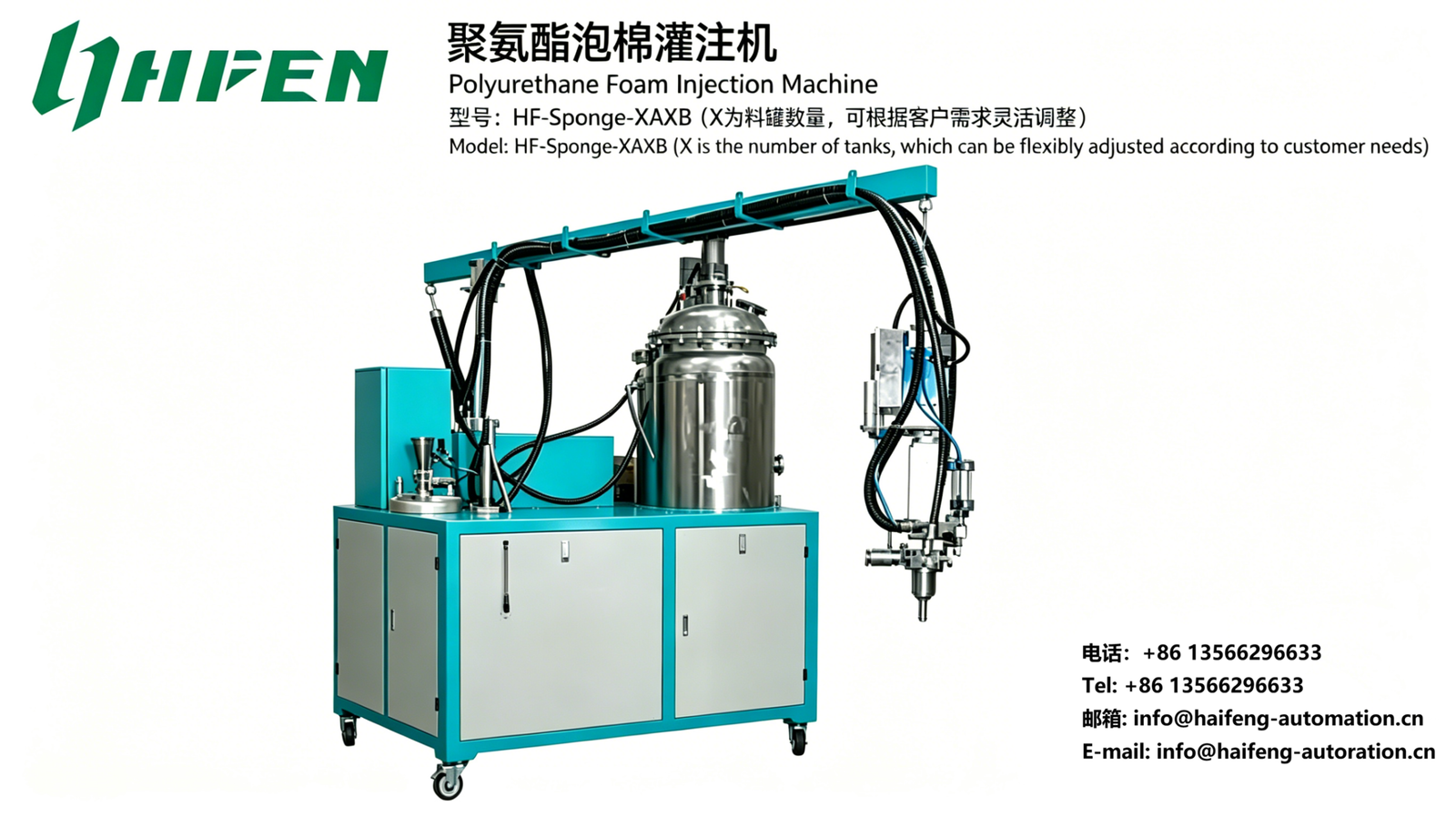

Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-Sponge-2A2B-GENPouring Rate100–2500 g/s (High/low flow for general foam, adjustable)Raw Material RatioPolyether polyol : Isocyanate (TDI/MDI) = 100:80–110Tank Capacity220 / 300 LMixing Head Speed4000–8000…
View Details

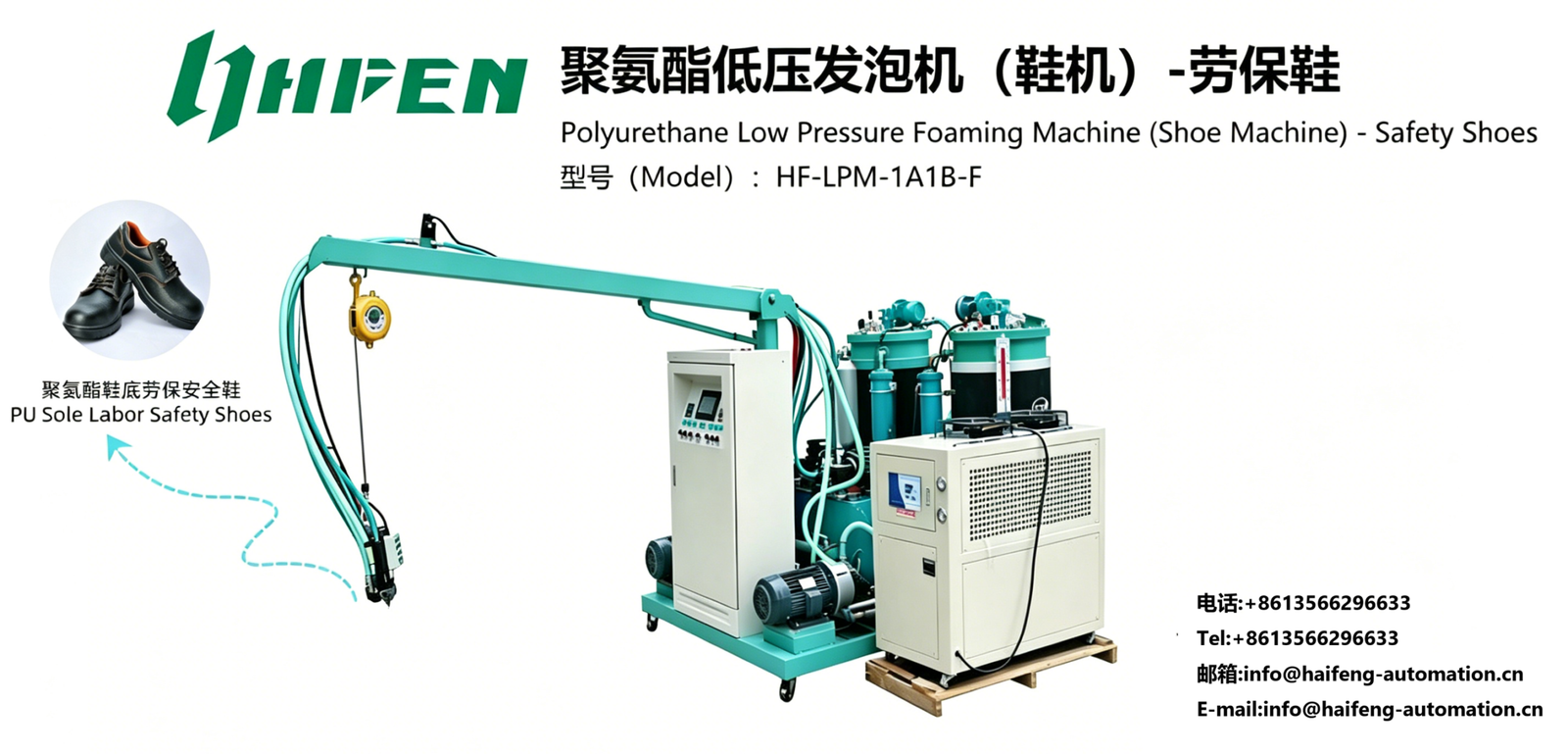

Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-2A1B-F (Customizable for 2~6 components)Output Rate30-85g/s (Adjustable)Material Mix RatioA:B = 1:1 to 1:4 (Adjustable)Raw Material Tank Capacity120L per tankTotal Installed Power8kWMixing Head Rotational…
View Details
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-Sponge-1A1B-Hydrophilic SpongePouring Rate50–1000 g/sRaw Material RatioHydrophilic modified polyether polyol : Isocyanate (TDI/MDI) = 100:85–95Tank Capacity100 / 150 LMixing Head Speed5000–9000 r/minMetering Accuracy≤±0.3%(Full range)Tank…
View Details
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-1A1B-F (2-6 components customizable)Dosing Rate30~150g/sMix RatioA:B = 100:35~85Tank Capacity200LPower12kWMixing Head SpeedPouring Speed: 4000~10000rpm (Adjustable) Injection Speed: 10000~18000rpm (Adjustable)Dosing Accuracy±0.5%Weight1000kgWarranty1 YearCertificationCE, EN 60204-1, ISO9001Application…
View Details
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-Sponge-1A1B-MedicalSpongePouring Rate50–1000 g/sRaw Material RatioMedical-grade polyether polyol : Medical-grade isocyanate (MDI) = 100:85–95Tank Capacity100 / 150 LMixing Head Speed5000–9000 r/minMetering Accuracy≤±0.3%(Full range)Tank Configuration1A1B…
View Details
Low Pressure Polyurethane Machine
Product DescriptionThis popcorn polyurethane pouring machine is an intelligent production equipment independently developed by Haifeng Automation for high-performance polyurethane foam products, specially designed for…
View Details
Elastomer Polyurethane Machine / Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPUE-2A2B-Auto-BufferDosing Rate50～1200 g/sShot Weight Per Mold50～500 g/moldMix RatioPolyether Polyol : Isocyanate = 100:40~90Tank Capacity200L / 250L (optional, per tank)Mixing Head Speed1500～3500 r/minDosing Accuracy≤±0.4%Metering…
View Details
Low Pressure Polyurethane Machine
Product DescriptionThe XCXL-3X500-D Intelligent Fully Automatic Polyurethane Pouring Machine is a high-end integrated polyurethane molding system developed by Haifeng Automation, integrating precision metering, intelligent…
View Details

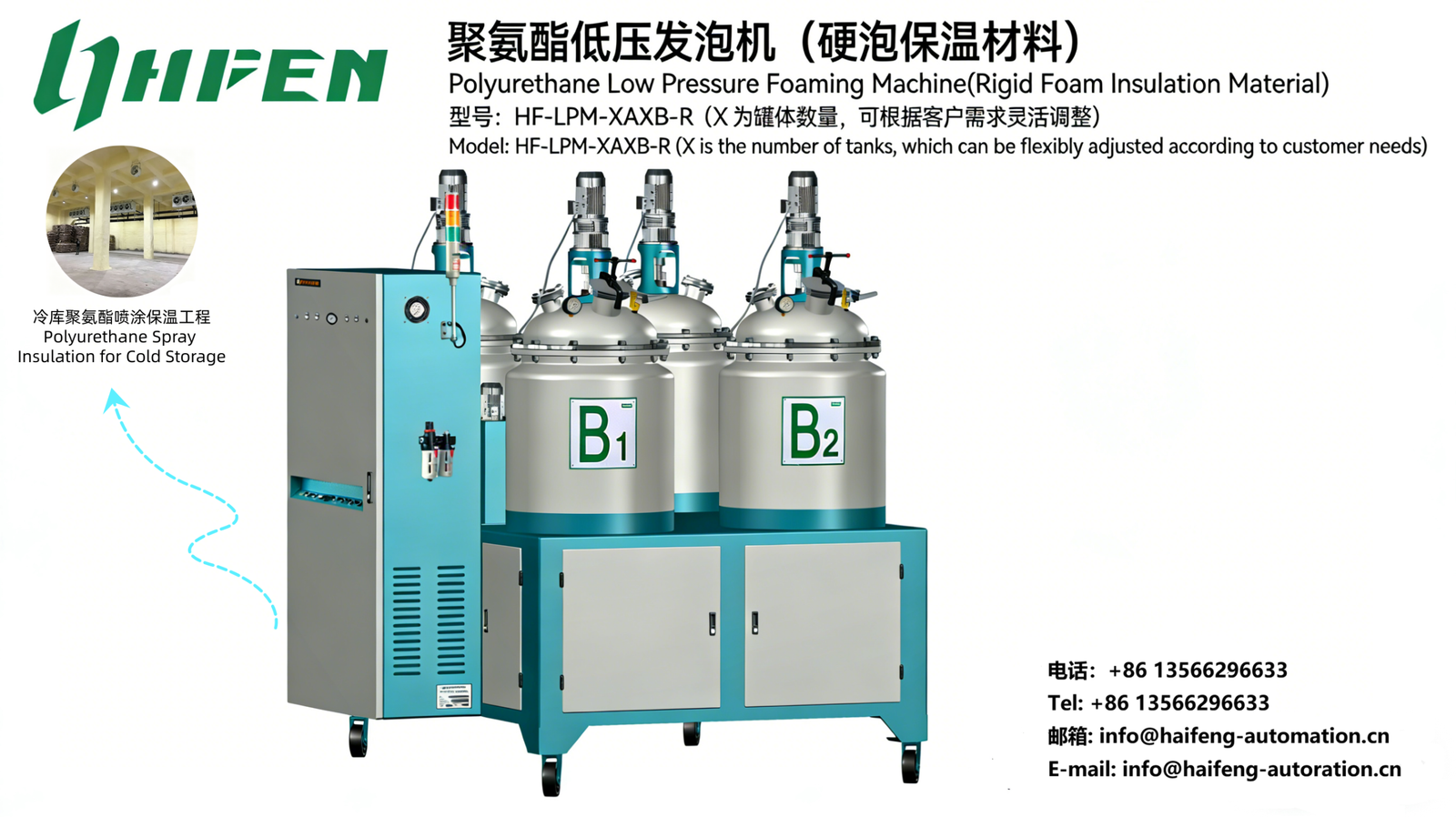

Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-2A2B-R-ColdStoragePouring Rate300–6000 g/sRaw Material Ratio1:1~1:3 continuously adjustableTank Capacity120/220/500/1000LMixing Head Speed10000–15000 r/minMetering Accuracy≤±1.0%(Full range)Tank Configuration2A2B four-tank multi-formula systemMaterial Temperature Control20~60℃ precise temperature controlCleaning SystemAutomatic…
View Details
KPU Production Line / Low Pressure Polyurethane Machine
Many footwear manufacturers often face unstable foaming ratio, high reject rate and large raw material waste when producing KPU shoe materials.Our Haifeng HF-LPM-1A1Q low-pressure…
