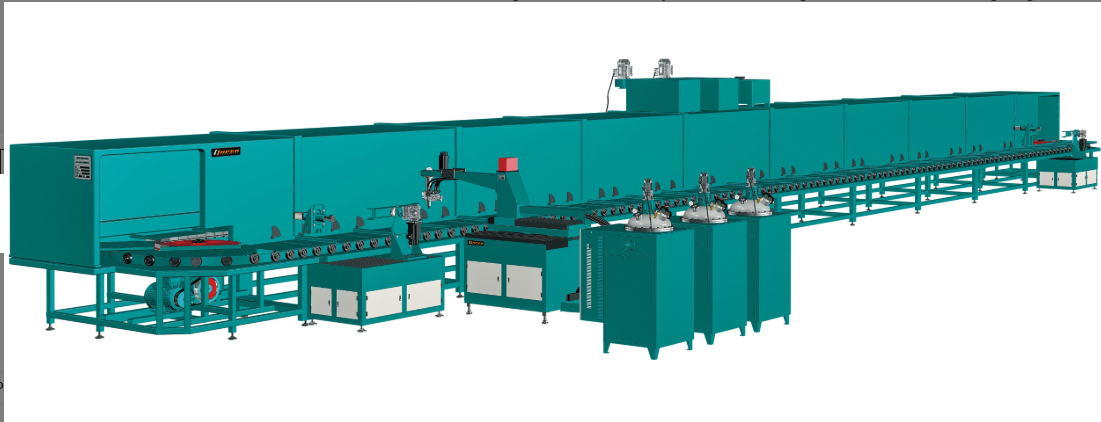

XCXL-3X500-D Intelligent Automatic Polyurethane Pouring Machine
Low Pressure Polyurethane Machine
Intelligent automatic polyurethane pouring machine is a high-end polyurethane molding equipment integrating precision metering, intelligent control and flexible production. Through the deep integration of Internet of Things, big data and automation technology, it realizes the unmanned operation of the whole process from raw material processing to finished product output, and it is designed for the modern manufacturing industry which has strict requirements on efficiency, precision and stability.
Key Features
- Highly Automated：
- Precision and Stability：
- Flexible and Efficient:
- Energy Efficiency and Environmental Protection:
Product Description
Intelligent automatic polyurethane pouring machine is a high-end polyurethane molding equipment integrating precision metering, intelligent control and flexible production. Through the deep integration of Internet of Things, big data and automation technology, it realizes the unmanned operation of the whole process from raw material processing to finished product output, and it is designed for the modern manufacturing industry which has strict requirements on efficiency, precision and stability.
Product Parameters
| Model | Name | Shape size(Length × Width × Height) | Number of baking passages | Heating mode | power |
|---|---|---|---|---|---|
| XCXL1-60(A, B) XCXL2-60(A, B) XCXL3-60(A, B) | 60-station eveniane forming line | 18.96 × 2 × 2.12 (Mold plate)600 × 500mm | 7 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXL1-70(A, B) XCXL2-70(A, B) XCXL3-70(A, B) | 70-station eveniane forming line | 21.96 × 2 × 2.12 (Mold plate)600 × 500mm | 8 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXL1-80(A, B) XCXL2-80(A, B) XCXL3-80(A, B) | 80-station eveniane forming line | 24.96 × 2 × 2.12 (Mold plate)600 × 500mm | 9 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXL1-60(A, B) XCXL2-60(A, B) XCXL3-60(A, B) | 60-station eveniane forming line[large] | 18.96 × 2.2 × 2.52 (Mold plate)600 × 500mm | 7 （1100 × 1050mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXL1-60(A, B) XCXL2-60(A, B) XCXL3-60(A, B) | 60-position sole forming line | 15.96 × 2 × 2.12 (Mold plate)500 × 500mm | 6 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXD1-60(A, B) XCXD2-60(A, B) XCXD3-60(A, B) | 72-position sole forming line | 18.96 × 2 × 2.12 (Mold plate)600 × 500mm | 7 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXD1-84(A, B) XCXD2-84(A, B) XCXD3-60(A, B) | 84-position sole forming line | 18.96 × 2 × 2.12 (Mold plate)600 × 500mm | 8 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
| XCXD1-96(A, B)XCXD2-96(A, B) XCXD3-96(A, B) | 96-position sole forming line | 18.96 × 2 × 2.12 (Mold plate)600 × 500mm | 9 （900 × 650mm） | Oil heat Electrothermal Oil electric heating | 5.5 53.5 56 |
Application Areas
| Sneaker Midsole:High Resilience EVA/PU Dual-Density Sole,Basketball Shoe Cushioning Layer |  |
| Safety Shoes:Impact-Resistant, Puncture-Proof Polyurethane Soles |  |
| Casual Shoes:Lightweight MD Soles, &Micro-Porous Polyurethane Insoles |  |
| Characteristic Processes:One-Step Molding with Dual Colors and Dual Hardnesses, Transparent Sole Casting |  |
Technical Highlights
Recipe Management
Store and recall multiple formulations for repeatable production.
Process Data Logging
Record key parameters to ensure quality traceability.
Reliable Mechanical Design
Durable components for continuous operation in industrial environments.
Optional Colorant Integration
Add a basic color-dosing system for product customization.
Why choose Haifeng's Intelligent Automatic Polyurethane Pouring Machine？
Pouring head system:
it has many kinds of injection protection, automatic monitoring of the working status of the metering pump, etc. When the ratio of material, pump speed, material temperature and pressure are abnormal, stops injection and prevents the generation of waste products.
The whole machine operation system:
after the system controller input programming, the assembly line and the casting, demolding, mold closing, and other components, are fully automatic intelligent operation operation, no need for manual operation, and the positioning accuracy is high, smooth operation, easy to operate and other characteristics.
New generation of casting head:
the casting head wear-resistant performance, sealing performance reaches zero leakage. Long service life (than XJJF-I-type casting head increased by more than 20 times) and on the (patented product spindle zero friction efficiency, continuous use of the temperature difference is normal, (XJJF-I-type casting head will produce heat).
Trusted Support
Backed by Haifeng's global service network and responsive technical assistance.
Ready to Upgrade Your Polyurethane Production?
Haifeng supplies polyurethane machinery, robotic systems, and complete production solutions backed by process evaluation, commissioning, training, and lifecycle support.
