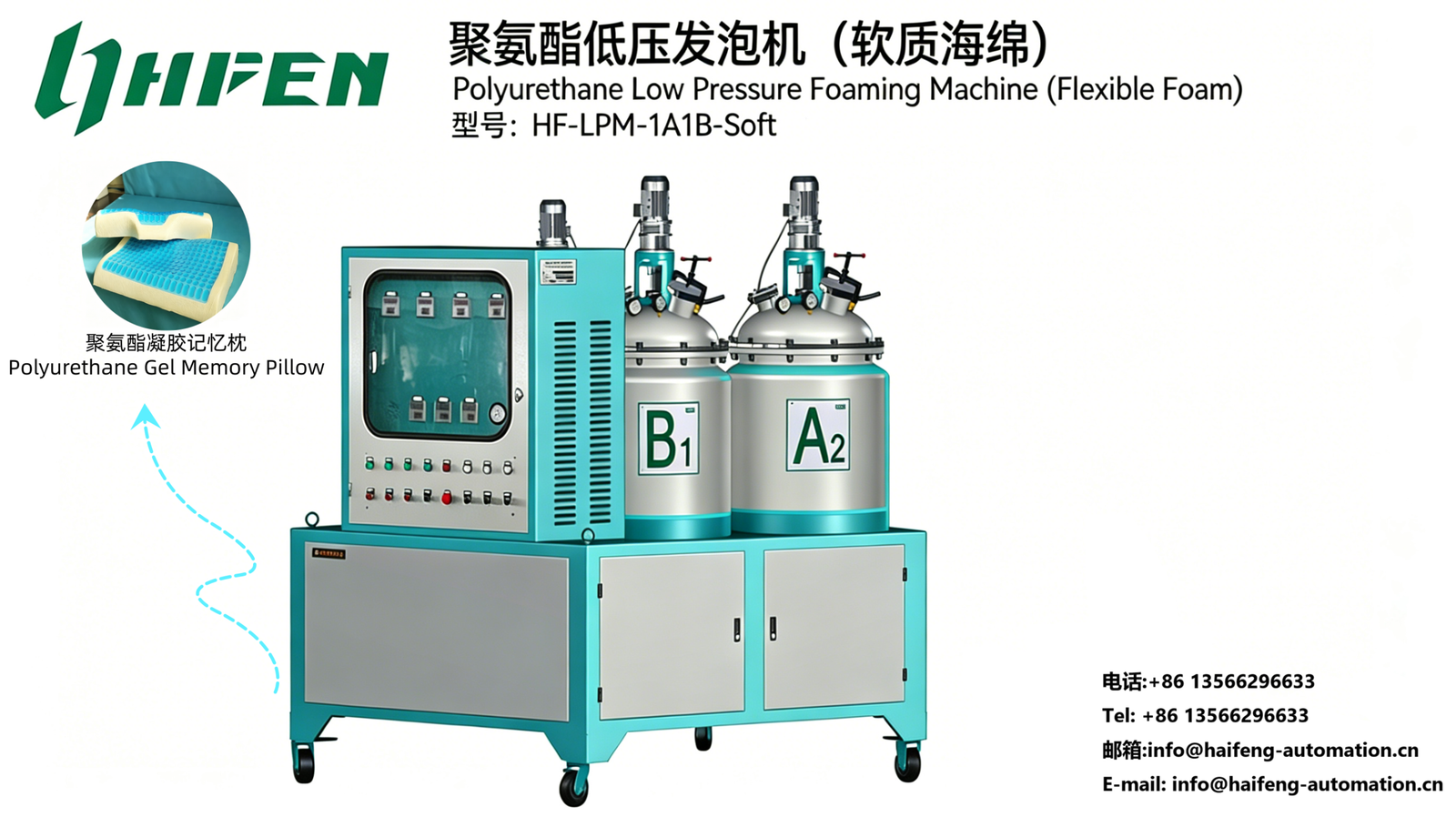

Polyurethane Low-Pressure Machine For Pillow Soft Sponge
Low Pressure Polyurethane Machine
Product ParametersParameterModel：HF-LPM-3A3B-Soft-PillowPouring Rate50–1000 g/sMaterial Ratio1:1~1:4 continuously adjustableTank Capacity120/220LMixing Head Speed0~8600r/min (Common: 3000~4500r/min)Metering Accuracy≤±0.8%(Full range)Tank Configuration3A3B (Six tanks)Cleaning SystemAutomatic air-purge cleaning (solvent-free, eco-friendly)Power5.5~7.5kWWarranty1 yearCertificationsCE, ISO9001Application ScenariosSpecially used for foaming of memory pillows, neck...
Key Features
- Precision process control
- Stable industrial production
- Flexible configuration options
- Full-cycle technical support
Product Parameters
| Parameter | Model：HF-LPM-3A3B-Soft-Pillow |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Material Ratio | 1:1~1:4 continuously adjustable |
| Tank Capacity | 120/220L |
| Mixing Head Speed | 0~8600r/min (Common: 3000~4500r/min) |
| Metering Accuracy | ≤±0.8%(Full range) |
| Tank Configuration | 3A3B (Six tanks) |
| Cleaning System | Automatic air-purge cleaning (solvent-free, eco-friendly) |
| Power | 5.5~7.5kW |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially used for foaming of memory pillows, neck pillows, hydrophilic cotton pillows, children’s pillows and other pillow cores. Supports multi-formula storage and quick switching, suitable for sample trial and small-batch flexible production, ideal for multi-category pillow core factories.
Core Advantages
3A3B six-tank multi-formula design, stores slow rebound, hydrophilic cotton and other pillow formulas, one-key switch for multi-category production.
Small-flow fine pouring control, perfectly suitable for small pillow molds, reducing material waste and improving utilization.
Special soft foaming process, fine cells and soft hand feeling, ensuring comfort and quality consistency.
Small capacity tanks + high-precision metering, fast material change, suitable for frequent sample trial production.
Product Parameters
| Parameter | Model：HF-LPM-3A3B-Soft-Pillow |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Material Ratio | 1:1~1:4 continuously adjustable |
| Tank Capacity | 120/220L |
| Mixing Head Speed | 0~8600r/min (Common: 3000~4500r/min) |
| Metering Accuracy | ≤±0.8%(Full range) |
| Tank Configuration | 3A3B (Six tanks) |
| Cleaning System | Automatic air-purge cleaning (solvent-free, eco-friendly) |
| Power | 5.5~7.5kW |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Application Scenarios
Specially used for foaming of memory pillows, neck pillows, hydrophilic cotton pillows, children’s pillows and other pillow cores. Supports multi-formula storage and quick switching, suitable for sample trial and small-batch flexible production, ideal for multi-category pillow core factories.
Core Advantages
3A3B six-tank multi-formula design, stores slow rebound, hydrophilic cotton and other pillow formulas, one-key switch for multi-category production.
Small-flow fine pouring control, perfectly suitable for small pillow molds, reducing material waste and improving utilization.
Special soft foaming process, fine cells and soft hand feeling, ensuring comfort and quality consistency.
Small capacity tanks + high-precision metering, fast material change, suitable for frequent sample trial production.
Application details are configured according to the material, product, and production process.
Haifeng provides process evaluation, equipment configuration, commissioning, and lifecycle technical support.
